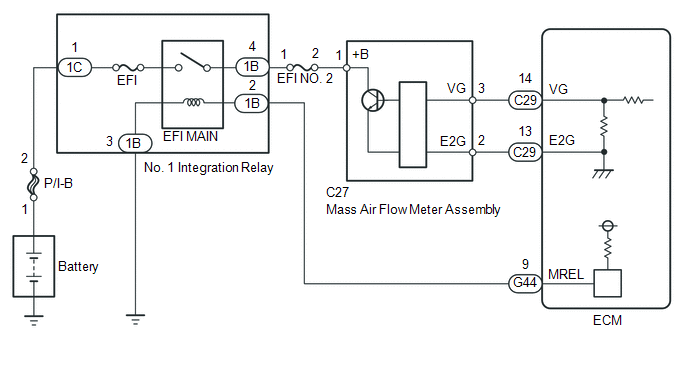

DTC P0102: Mass or Volume Air Flow Circuit Low Input; DTC P0103: Mass or Volume Air Flow Circuit High Input [08/2015 - ]: Wiring Diagram

GTY949269

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
