Engine Control System (Circuit Tests) (2 Of 2)
>>
SFI System
>>
VC Output Circuit [08/2019 - 08/2022]
>>
Wiring Diagram
VC Output Circuit [08/2019 - 08/2022]: Wiring Diagram
For the circuit diagram of the ECM power source refer to the ECM power source circuit.
Refer to
ECM Power Source Circuit [08/2019 - ]

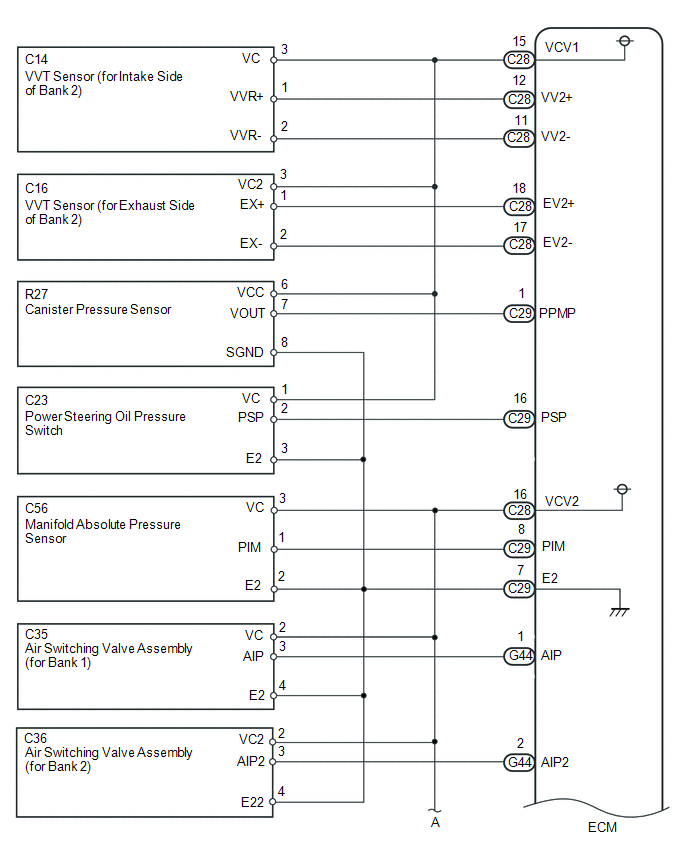

VC Output Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
