Home >> Lexus >> 2017 >> GX 460 Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (Circuit Tests) (2 Of 2) >> SFI System >> VC Output Circuit [08/2015 - 08/2019] >> Wiring Diagram

VC Output Circuit [08/2015 - 08/2019]: Wiring Diagram

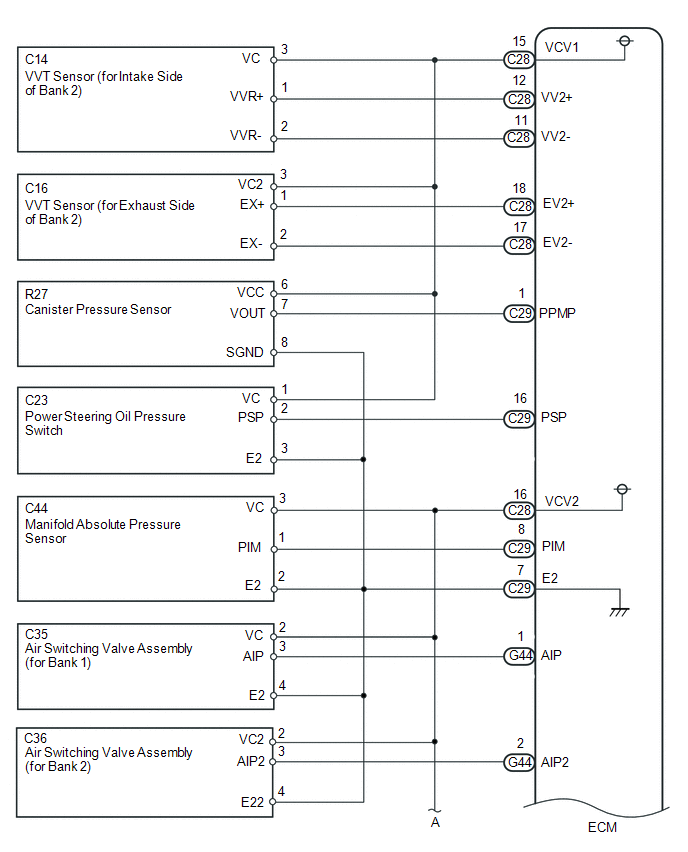

GTY616911

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

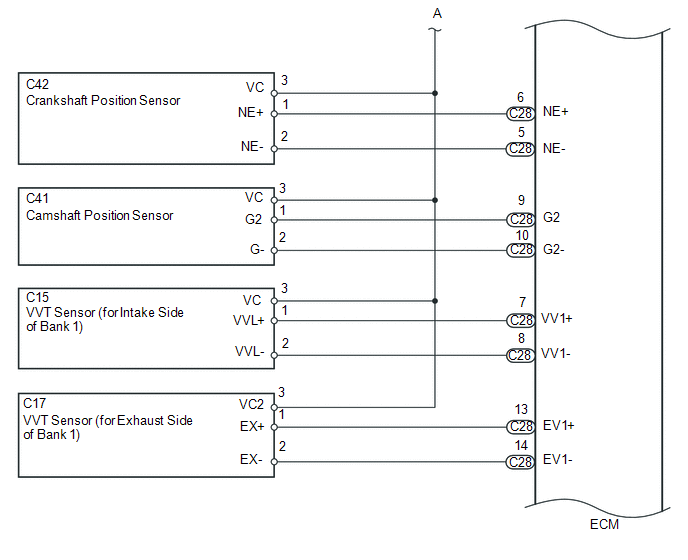

GTY625057

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

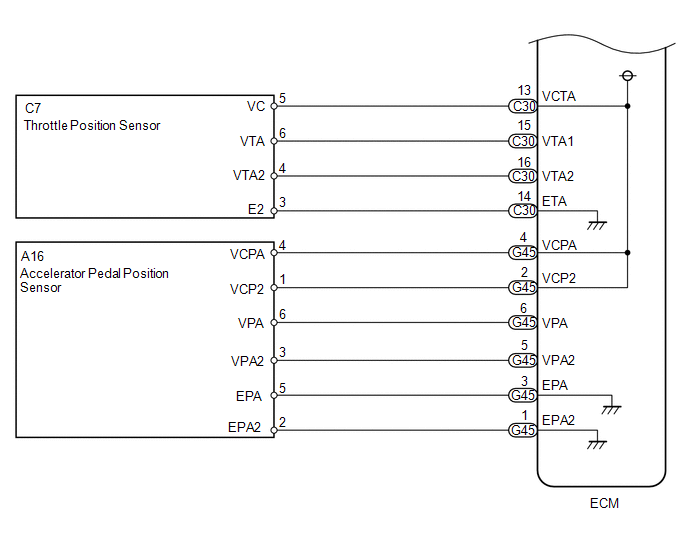

GTY464706

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
