Removal [08/2019 - ]: Procedure

  1. REMOVE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

    Refer to REMOVAL [08/2019 - ]

  2. INSTALL STEERING SENSOR
    1. Disengage the 6 claws and 2 pins, and remove the steering sensor from the spiral cable sub-assembly.

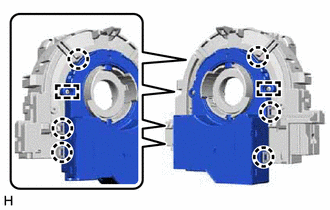

      GTY956994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the claws and pins of the spiral cable sub-assembly.
