Steering Angle Sensor
>>
Components [08/2019 - ]
Components [08/2019 - ]

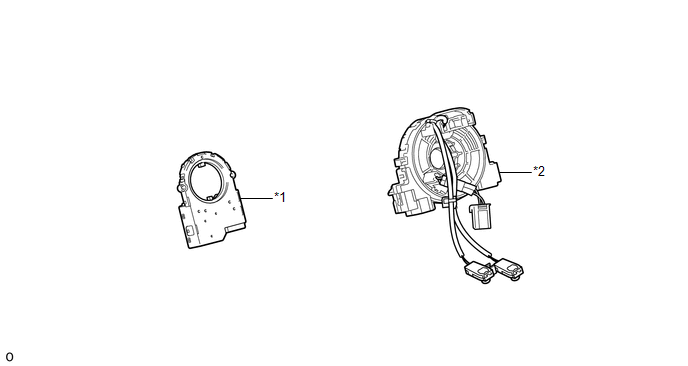

Fig 1: Steering Angle Sensor Replacement Components [08/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
STEERING SENSOR
*2
SPIRAL CABLE SUB-ASSEMBLY
