Brake Control System (Service Information)
>>
Front Speed Sensor
>>
Components [08/2015 - ]
Components [08/2015 - ]

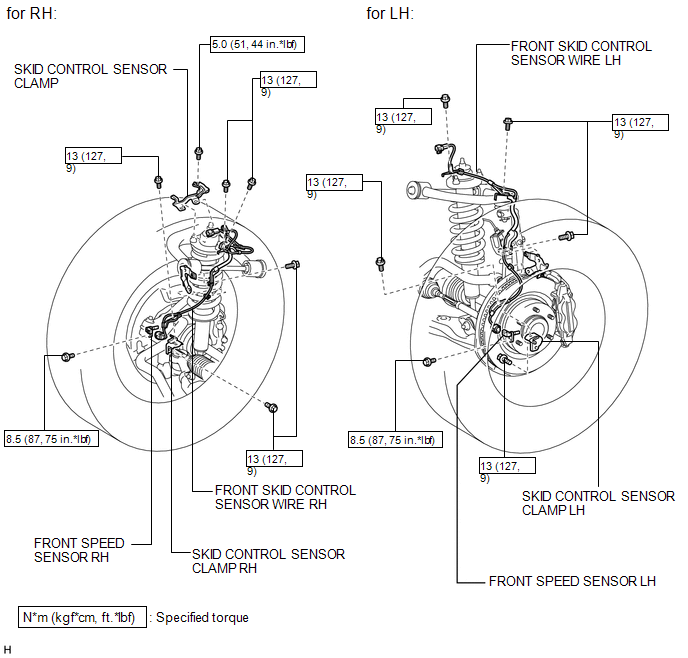

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications [08/2015 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
