Parts Location [08/2015 - 08/2019]: Illustration

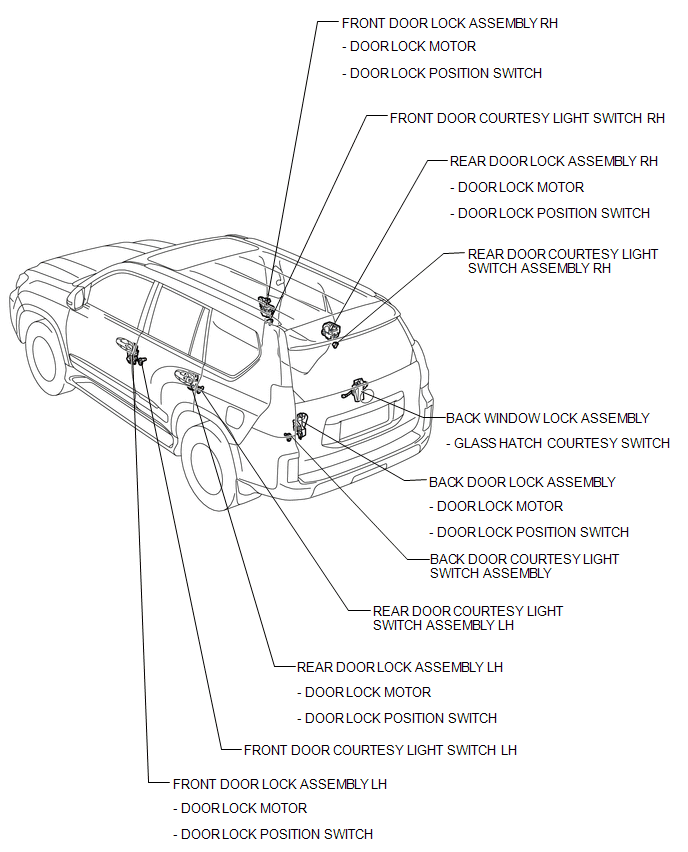

Fig 1: Smart Access System With Push-Button Start (For Entry Function) Components Location (1 Of 3)
GTY259570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

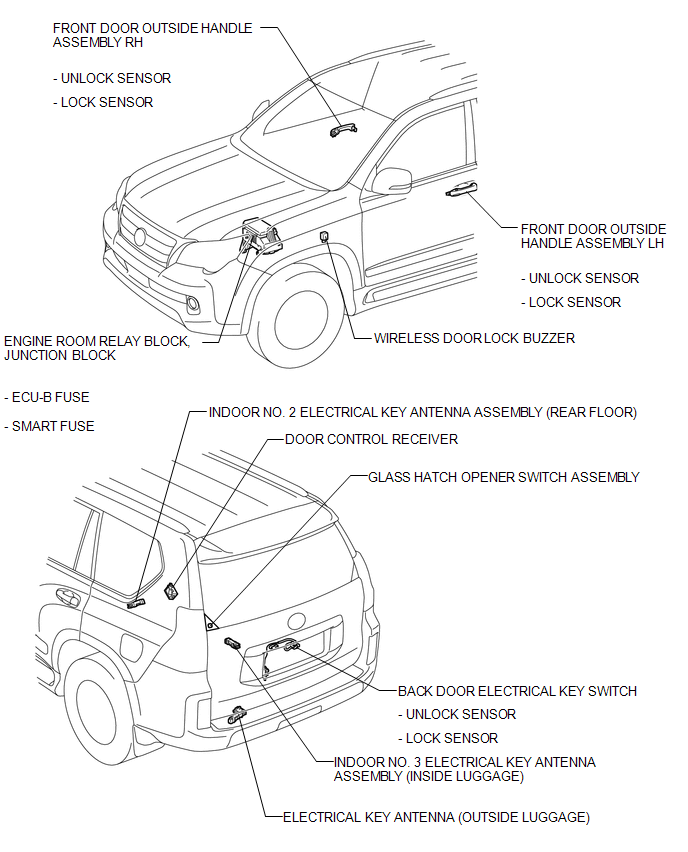

Fig 1: Smart Access System With Push-Button Start (For Entry Function) Components Location (2 Of 3)
GTY675831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

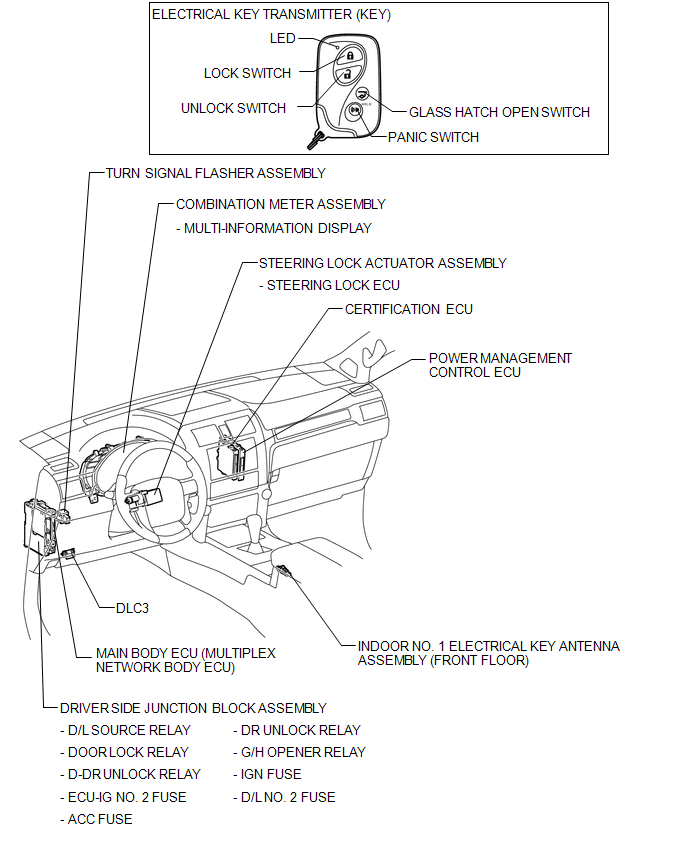

Fig 1: Smart Access System With Push-Button Start (For Entry Function) Components Location (3 Of 3)
GTY635928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
