ECU Power Source Circuit [08/2019 - ]: Procedure
- INSPECT BATTERY
Result:
NG
CHECK OR REPLACE CHARGING SYSTEM OR BATTERY
Result:
OK
See step 2
- CHECK HARNESS AND CONNECTOR (+B AND IG TERMINAL)

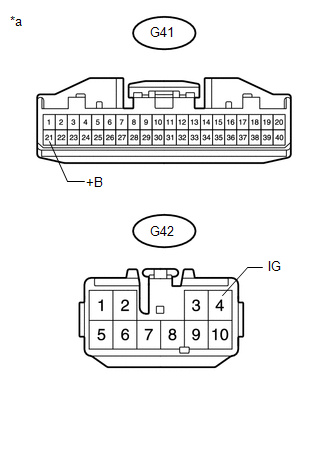

*a Front view of wire harness connector
(to 4 Wheel Drive Control ECU)- Turn the engine switch off.
- Disconnect the G41 and G42 4 wheel drive control ECU connectors.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition G41-21 (+B) - Body ground Always 11 to 14 V G42-4 (IG) - Body ground Engine switch on (IG) 11 to 14 V Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (+B AND IG CIRCUIT)
Result:
OK
See step 3
- CHECK HARNESS AND CONNECTOR (GND TERMINAL)
*a Front view of wire harness connector
(to 4 Wheel Drive Control ECU)- Turn the engine switch off.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition G42-10 (GND) - Body ground Always Below 1 Ω Result
Proceed to OK NG
Result:
OK
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [08/2019 - 08/2021] , or refer to PROBLEM SYMPTOMS TABLE [08/2021 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (GND CIRCUIT)
