DTC P17AC: Transfer Shift Motor Limit Switch Circuit [08/2019 - ]: Procedure
- CHECK HARNESS AND CONNECTOR (4 WHEEL DRIVE CONTROL ECU - TRANSFER SHIFT ACTUATOR ASSEMBLY)
- Disconnect the G41 4 wheel drive control ECU connector.
- Disconnect the C34 transfer shift actuator assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition G41-8 (HL1) - C34-12 (HL1) Always Below 1 Ω G41-7 (HL2) - C34-11 (HL2) Always Below 1 Ω C34-10 (GND) - Body ground Always Below 1 Ω G41-8 (HL1) or C34-12 (HL1) - Body ground Always 10 kΩ or higher G41-7 (HL2) or C34-11 (HL2) - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 2
- CHECK 4 WHEEL DRIVE CONTROL ECU (ECU OUTPUT VOLTAGE)

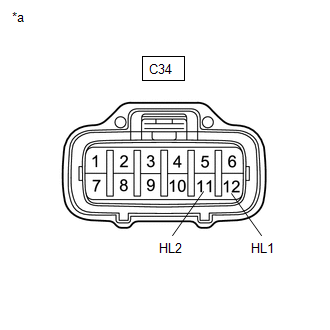

*a Front view of wire harness connector
(to Transfer Shift Actuator Assembly)- Disconnect the C34 transfer shift actuator assembly connector.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition C34-12 (HL1) - Body ground Engine switch on (IG) 10.5 to 14 V C34-11 (HL2) - Body ground Engine switch on (IG) 10.5 to 14 V Result
Proceed to OK NG
Result:
OK
REPLACE TRANSFER SHIFT ACTUATOR ASSEMBLY. Refer to DISASSEMBLY [08/2015 - ]
Result:
NG
REPLACE 4 WHEEL DRIVE CONTROL ECU. Refer to REMOVAL [08/2015 - ]
