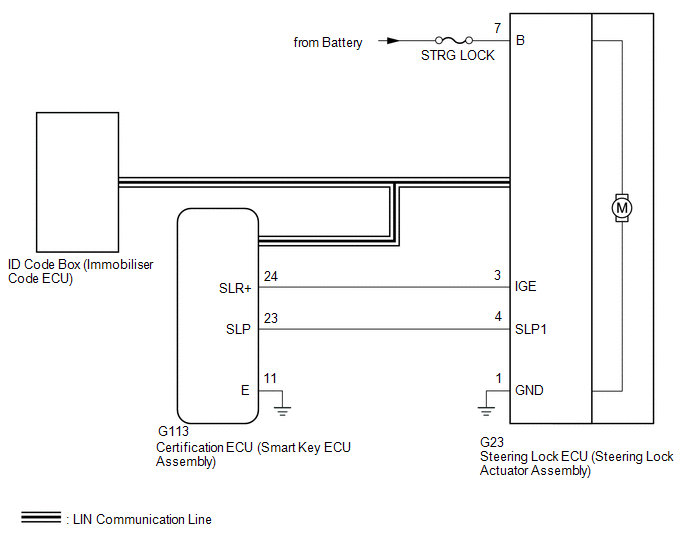

Unable to Unlock Steering Wheel (Engine cannot Start) [08/2019 - 08/2022]: Wiring Diagram

GTY955286

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
