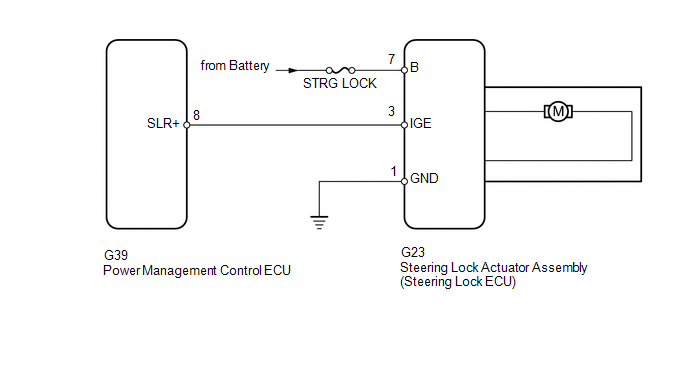

Unable to Unlock Steering Wheel (Engine cannot Start) [08/2015 - 08/2019]: Wiring Diagram

GTY275541

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
