Unable to Lock Steering Wheel [08/2015 - 08/2019]: Procedure

1. Using the Techstream, confirm the output of DTCs for all systems.

   OK

   No DTCs are output.

   NOTE:

   • When using the Techstream with the engine switch off, perform either of the following: 1) Turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the Techstream and vehicle begins, or 2) connect the Techstream to the vehicle, select the vehicle type under manual mode, and then enter the following menus: Body Electrical / Smart Access / Trouble Codes.
   • Make sure that no DTCs are output. If any DTCs are output, proceed to the Diagnostic Trouble Code Chart (Refer to DTC CHECK / CLEAR [08/2015 - 08/2019] ).

Result:

NG

GO TO DTC CHART. Refer to: DIAGNOSTIC TROUBLE CODE CHART [08/2015 - 08/2019]  or  DIAGNOSTIC TROUBLE CODE CHART [08/2019 - 08/2022]

Result:

OK

See step  2

1. Use the Data List to check if the steering lock command is functioning properly.
   SMART ACCESS



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Lock Request Receive	Reception state of steering lock command signal sent to ID code box determined by certification ECU/OK or NG HINT:  The reception state is maintained for 10 seconds. When 10 seconds or more elapse after receiving the signal, the item changes to "NG".	OK: Within 10 seconds of opening any door with engine switch off and shift lever in P NG: Except above	If this item does not change to "OK" even though the steering lock conditions are met, the certification ECU may be malfunctioning.

   OK

   The certification ECU receives a lock request signal within 10 seconds of turning the engine switch from on (IG) to off and opening a door with the shift lever in P, and OK is displayed on the Techstream screen.

Result:

NG

See step  5

Result:

OK

See step  3

See step  1

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

See step  4

Result:

OK

REPLACE STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU)

(Refer to DISASSEMBLY [08/2015 - 08/2019] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

1. Using the Techstream, check the following main body ECU Data List item by opening and closing the driver side door to confirm the state of the driver side door courtesy light switch.
   MAIN BODY



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   FL Door Courtesy SW	Front door courtesy switch LH/ON or OFF	ON: Front door LH open OFF: Front door LH closed	If this item does not change according to the actual state of the driver side door, there is a malfunction in the door courtesy light switch or a related part.

   OK

   The Data List item changes in accordance with the opening and closing of the driver side door.

Result:

NG

GO TO LIGHTING SYSTEM (DOOR COURTESY SWITCH CIRCUIT)

(Refer to Door Courtesy Switch Circuit [08/2015 - 08/2019] )

Result:

OK

See step  6

1. Use the Data List to check if the P shift lever position signal is functioning properly.
   POWER SOURCE CONTROL



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Shift P Signal	Shift position (P)/ON or OFF	ON: Shift lever in P OFF: Shift lever not in P	Use this item to determine if the shift position switch is malfunctioning. The engine cannot be started when this item is "OFF".

   OK

   ON (shift lever in P) or OFF (shift lever not in P) appears on the screen according to the shift lever position.

Result:

NG

See step  11

Result:

OK

See step  7

1. Use the Data List to check if the switch status signal is functioning properly.
   SMART ACCESS



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Ignition Switch	State of certification ECU IG power supply input/ON or OFF	ON: Engine switch on (IG) OFF: Engine switch off	This item displays "OFF" when the engine switch is on (ACC).

   OK

   The Data List item changes according to the operation of the engine switch.

Result:

NG

See step  13

Result:

OK

See step  8

1. Use the Data List to check if S code certification is functioning properly.
   SMART ACCESS



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   S Code Check	Verification result between certification ECU and ID code box/OK or NG	OK: Verification result normal NG: Verification result abnormal	When a malfunction is present: The ID code for the certification ECU or ID code box is not registered or the certification ECU or ID code box is malfunctioning. The steering cannot be locked. The steering cannot be unlocked (the engine cannot be started).

   OK

   OK is displayed on the Techstream.

   HINT:

   Reasons for verification failure:

   • The certification ECU or ID code box is malfunctioning.
   • There is a problem with the communication between ECUs.
   • An ECU is replaced, but is not registered.
   • An ECU is replaced with an ECU which has a code already stored in it.

Result:

NG

See step  14

Result:

OK

See step  9

1. Use the Data List to check if L code certification is functioning properly.
   SMART ACCESS



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   L Code Check	Verification result between ID code box and steering lock actuator assembly/OK or NG	OK: Verification result normal NG: Verification result abnormal	When a malfunction is present: The ID code for the ID code box or steering lock actuator assembly is not registered or the ID code box or steering lock actuator is malfunctioning. The steering cannot be locked. The steering cannot be unlocked (the engine cannot be started).

   OK

   OK is displayed on the Techstream.

   HINT:

   Reasons for verification failure:

   • The steering lock ECU or ID code box is malfunctioning.
   • There is a problem with the communication between ECUs.
   • An ECU is replaced, but is not registered.
   • An ECU is replaced with an ECU which has a code already stored in it.

Result:

NG

See step  15

Result:

OK

See step  10

1. Replace the steering lock actuator assembly (steering lock ECU) with a new one (Refer to REMOVAL [08/2015 - 08/2019] ).
2. Perform the registration procedures (Refer to REGISTRATION [08/2015 - 08/2019] ).
3. Turn the engine switch on (IG).
4. Operate the steering wheel and check the steering condition.

   OK

   Steering is unlocked.

Result:

OK

END

Result:

NG

REPLACE ID CODE BOX

(Refer to REMOVAL [08/2015 - ] )

1. Disconnect the G32 shift lock control ECU connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   11 (P2) - 3 (E)	Shift lever in P	10 kΩ or higher
   	Shift lever not in P	Below 1 Ω

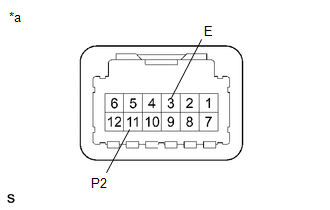

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Shift Lock Control ECU)

Result:

NG

REPLACE SHIFT LOCK CONTROL ECU SUB-ASSEMBLY

(Refer to DISASSEMBLY [08/2015 - ] )

Result:

OK

See step  12

1. Disconnect the G39 power management control ECU connector.
2. Disconnect the G32 shift lock control ECU connector.
3. Check for deformation and corrosion of the connector case and terminals.

   OK

   There is no deformation or corrosion of the connector case or terminals.

4. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G39-16 (P) - G32-11 (P2)	Always	Below 1 Ω
   G39-16 (P) or G32-11 (P2) - Body ground	Always	10 kΩ or higher

Result:

OK

REPLACE POWER MANAGEMENT CONTROL ECU

(Refer to REMOVAL [08/2015 - 08/2019] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

1. Disconnect the G26 certification ECU connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G26-15 (E) - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   G26-16 (IG) - Body ground	Engine switch on (IG)	11 to 14 V
   	Engine switch off	Below 1 V

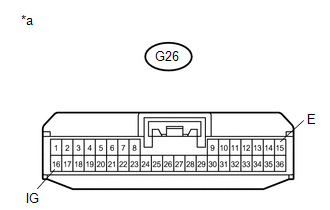

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Certification ECU)

Result:

OK

REPLACE CERTIFICATION ECU

(Refer to REMOVAL [08/2015 - 08/2019] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

1. Replace the certification ECU with a new one (Refer to REMOVAL [08/2015 - 08/2019] ).
2. Perform the registration procedures (Refer to REGISTRATION [08/2015 - 08/2019] ).
3. Use the Data List to check if S code certification is functioning properly again.
   SMART ACCESS



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   S Code Check	Verification result between certification ECU and ID code box/OK or NG	OK: Verification result normal NG: Verification result abnormal	When a malfunction is present: The ID code for the certification ECU or ID code box is not registered or the certification ECU or ID code box is malfunctioning. The steering cannot be locked. The steering cannot be unlocked (the engine cannot be started).

   OK

   OK is displayed on the Techstream.

Result:

OK

END

Result:

NG

REPLACE ID CODE BOX

(Refer to REMOVAL [08/2015 - ] )

1. Replace the steering lock actuator assembly (steering lock ECU) with a new one (Refer to REMOVAL [08/2015 - 08/2019] ).
2. Perform the registration procedures (Refer to REGISTRATION [08/2015 - 08/2019] ).
3. Use the Data List to check if L code certification is functioning properly again.
   SMART ACCESS



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   L Code Check	Verification result between ID code box and steering lock actuator assembly/OK or NG	OK: Verification result normal NG: Verification result abnormal	When a malfunction is present: The ID code for the ID code box or steering lock actuator assembly is not registered or the ID code box or steering lock actuator is malfunctioning. The steering cannot be locked. The steering cannot be unlocked (the engine cannot be started).

   OK

   OK is displayed on the Techstream.

Result:

OK

END

Result:

NG

REPLACE ID CODE BOX

(Refer to REMOVAL [08/2015 - ] )
