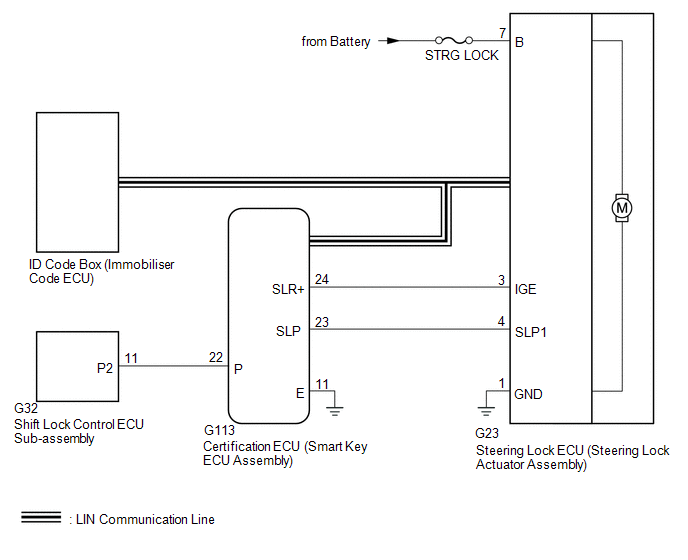

Steering Lock does not Lock [08/2019 - 08/2022]: Wiring Diagram

GTY955441

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
