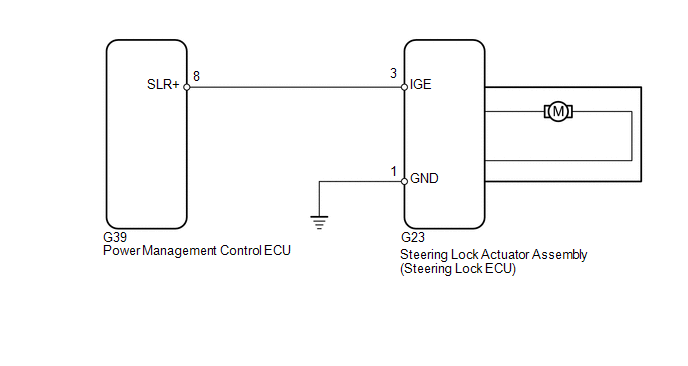

DTC B2782: Power Source Control ECU Malfunction [08/2015 - 08/2019]: Wiring Diagram

GTY275326

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
