IG Power Source Circuit [08/2015 - 08/2019]: Procedure

1. Disconnect the G33 multiplex tilt and telescopic ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   G33-8 (IG) - Body ground	Engine switch on (IG)	11 to 14 V

   TEXT IN ILLUSTRATION

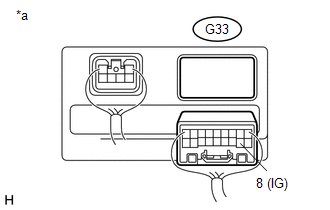

   *a	Rear view of wire harness connector (to Multiplex Tilt and Telescopic ECU)

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  2

See step  3

Result:

OK

REPLACE MULTIPLEX TILT AND TELESCOPIC ECU

(Refer to REMOVAL [08/2015 - 08/2019] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
