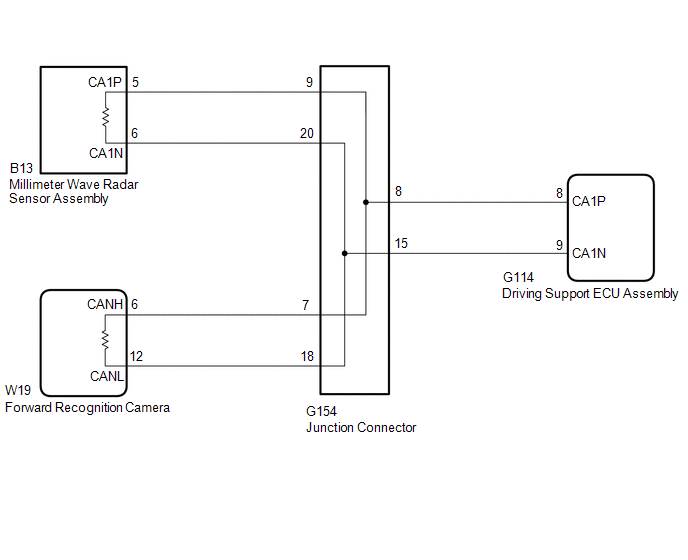

DTC U1002: Lost Communication with Gateway Module [08/2019 - ]: Wiring Diagram

GTY949213

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
