DTC B1790: Center Airbag Sensor Assembly Communication Circuit Malfunction [08/2019 - ]: Procedure

  1. CHECK FOR DTC
    1. Turn the engine switch on (IG), and wait for at least 60 seconds.
    2. Clear the DTCs (Refer to DTC CHECK / CLEAR [08/2019 - ] ).

      HINT:

      • First clear the DTCs stored in the occupant classification ECU, and then clear the DTCs stored in the center airbag sensor.
      • Use the Techstream to clear the DTCs of the occupant classification ECU, otherwise the DTCs cannot be cleared.
    3. Turn the engine switch off.
    4. Turn the engine switch on (IG), and wait for at least 60 seconds.
    5. Check for DTCs (Refer to DTC CHECK / CLEAR [08/2019 - ] ).

      OK

      DTC B1790 is not output.

      HINT:

      DTCs other than DTC B1790 may be output at this time, but they are not related to this check.

    Result:

    OK

    USE SIMULATION METHOD TO CHECK

    (Refer to DIAGNOSIS SYSTEM [08/2015 - ] )

    Result:

    NG

    See step  2

  2. CHECK CONNECTION OF CONNECTOR
    1. Turn the engine switch off.
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Check that the connectors are properly connected to the occupant classification ECU and center airbag sensor.

      OK

      Connectors are properly connected.

    Result:

    NG

    CONNECT CONNECTOR

    Result:

    OK

    See step  3

  3. CHECK CONNECTOR
    1. Disconnect the connectors from the center airbag sensor and occupant classification ECU.
    2. Check that the connectors (on the center airbag sensor side and occupant classification ECU side) are not damaged (Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE [08/2015 - ] ).

      OK

      Connectors are not deformed or damaged.

    Result:

    NG

    REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. CHECK OCCUPANT CLASSIFICATION SYSTEM CIRCUIT
    1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
      GTY639497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      a4-8 (FSR+) - Body ground Engine switch on (IG) Below 1 V
      a4-4 (FSR-) - Body ground
    3. Turn the engine switch off.
    4. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    5. Using a service wire, connect terminals 16 (FSR+) and 24 (FSR-) of connector B.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector.

    6. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      a4-8 (FSR+) - a4-4 (FSR-) Always Below 1 Ω
    7. Disconnect the service wire from connector B.
    8. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      a4-8 (FSR+) - a4-4 (FSR-) Always 1 MΩ or higher
      a4-8 (FSR+) - Body ground
      a4-4 (FSR-) - Body ground
      TEXT IN ILLUSTRATION

      *1 Occupant Classification ECU
      *2 Center Airbag Sensor
      *3 Service Wire
      *4 Connector E
      *5 Connector B
      *a Front view of wire harness connector
      (to Occupant Classification ECU)
      *b Rear view of wire harness connector
      (to Center Airbag Sensor)

    Result:

    NG

    See step  10

    Result:

    OK

    See step  5

  5. CHECK FOR DTC
    1. Connect the connectors to the occupant classification ECU and center airbag sensor.
    2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    3. Turn the engine switch on (IG), and wait for at least 60 seconds.
    4. Clear the DTCs (Refer to DTC CHECK / CLEAR [08/2019 - ] ).

      HINT:

      • First clear the DTCs stored in the occupant classification ECU, and then clear the DTCs stored in the center airbag sensor.
      • Use the Techstream to clear the DTCs of the occupant classification ECU, otherwise the DTCs cannot be cleared.
    5. Turn the engine switch off.
    6. Turn the engine switch on (IG), and wait for at least 60 seconds.
    7. Check for DTCs (Refer to DTC CHECK / CLEAR [08/2019 - ] ).

      OK

      DTC B1790 is not output.

      HINT:

      DTCs other than DTC B1790 may be output at this time, but they are not related to this check.

    Result:

    OK

    USE SIMULATION METHOD TO CHECK

    (Refer to DIAGNOSIS SYSTEM [08/2015 - ] )

    Result:

    NG

    See step  6

  6. REPLACE OCCUPANT CLASSIFICATION ECU
    1. Turn the engine switch off.
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Replace the occupant classification ECU (Refer to REMOVAL [08/2015 - ] ).

      HINT:

      Perform the inspection using parts from a normal vehicle when possible.

    Result:

    NEXT

    See step  7

  7. PERFORM ZERO POINT CALIBRATION
    1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    2. Turn the engine switch on (IG).
    3. Perform the zero point calibration (Refer to INITIALIZATION [08/2015 - ] ).

      OK

      "Zero Point Calibration is complete." is displayed.

    Result:

    NEXT

    See step  8

  8. PERFORM SENSITIVITY CHECK
    1. Perform the sensitivity check (Refer to INITIALIZATION [08/2015 - ] ).

      Standard

      27 to 33 kg (59.5 to 72.8 lb)

    Result:

    NEXT

    See step  9

  9. CHECK FOR DTC
    1. Clear the DTCs (Refer to DTC CHECK / CLEAR [08/2019 - ] ).

      HINT:

      • First clear the DTCs stored in the occupant classification ECU, and then clear the DTCs stored in the center airbag sensor.
      • Use the Techstream to clear the DTCs of the occupant classification ECU, otherwise the DTCs cannot be cleared.
    2. Turn the engine switch off.
    3. Turn the engine switch on (IG), and wait for at least 60 seconds.
    4. Check for DTCs (Refer to DTC CHECK / CLEAR [08/2019 - ] ).

      OK

      DTC B1790 is not output.

      HINT:

      DTCs other than DTC B1790 may be output at this time, but they are not related to this check.

    Result:

    OK

    END (OCCUPANT CLASSIFICATION ECU IS DEFECTIVE)

    Result:

    NG

    REPLACE CENTER AIRBAG SENSOR ASSEMBLY

    (Refer to REMOVAL [08/2015 - ] )

  10. CHECK FRONT SEAT WIRE RH (OCCUPANT CLASSIFICATION ECU - FLOOR WIRE)
    1. Disconnect the front seat wire RH connector from the floor wire.

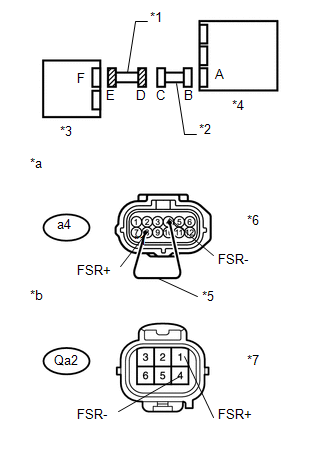

      GTY964468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      Qa2-1 (FSR+) - Body ground Engine switch on (IG) Below 1 V
      Qa2-4 (FSR-) - Body ground
    4. Turn the engine switch off.
    5. Disconnect the connector from the occupant classification ECU.
    6. Using a service wire, connect terminals 8 (FSR+) and 4 (FSR-) of connector E.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector.

    7. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Qa2-1 (FSR+) - Qa2-4 (FSR-) Always Below 1 Ω
    8. Disconnect the service wire from connector E.
    9. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Qa2-1 (FSR+) - Qa2-4 (FSR-) Always 1 MΩ or higher
      Qa2-1 (FSR+) - Body ground
      Qa2-4 (FSR-) - Body ground
      TEXT IN ILLUSTRATION

      *1 Front Seat Wire RH
      *2 Floor Wire
      *3 Occupant Classification ECU
      *4 Center Airbag Sensor
      *5 Service Wire
      *6 Connector E
      *7 Connector D
      *a Front view of wire harness connector
      (to Occupant Classification ECU)
      *b Front view of wire harness connector
      (to Front Seat Wire RH)

    Result:

    OK

    REPLACE FLOOR WIRE

    Result:

    NG

    REPLACE FRONT SEAT WIRE RH

    (Refer to DISASSEMBLY [08/2015 - 08/2021] , or refer to DISASSEMBLY [08/2021 - ] )
