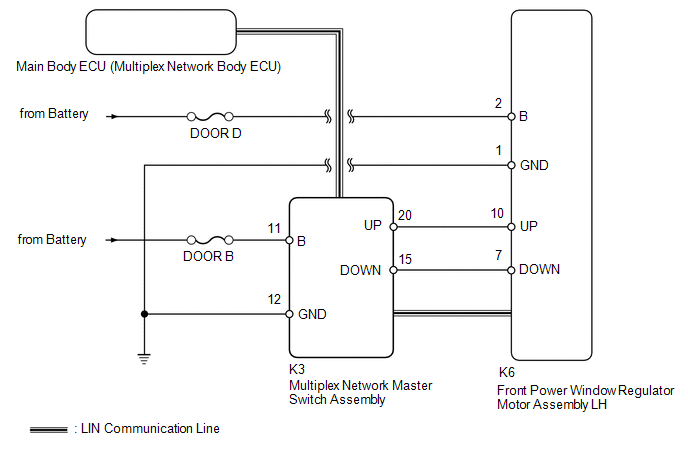

Driver Side Power Window does not Operate with Power Window Master Switch [08/2019 - ]: Wiring Diagram

GTY949208

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
