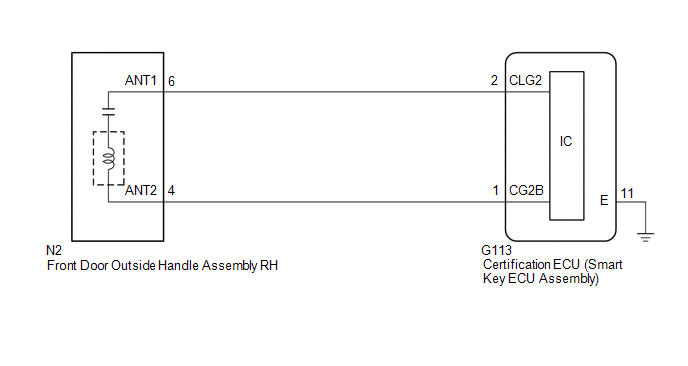

Front Passenger Side Door Entry Unlock Function does not Operate [08/2019 - ]: Wiring Diagram

GTY955156

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
