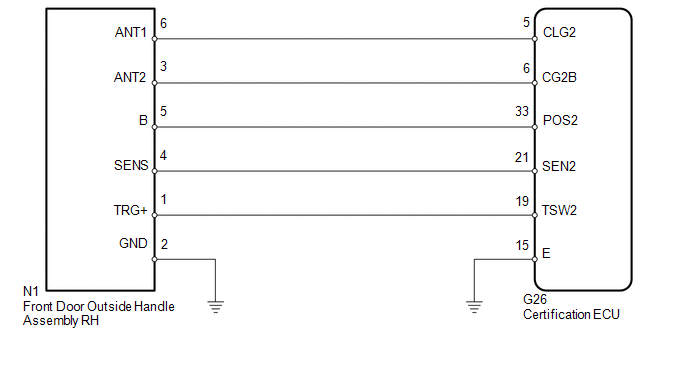

Front Passenger Side Door Entry Lock and Unlock Functions do not Operate [08/2015 - 08/2019]: Wiring Diagram

GTY667870

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
