Wiper Switch
>>
Components [08/2019 - ]
Components [08/2019 - ]

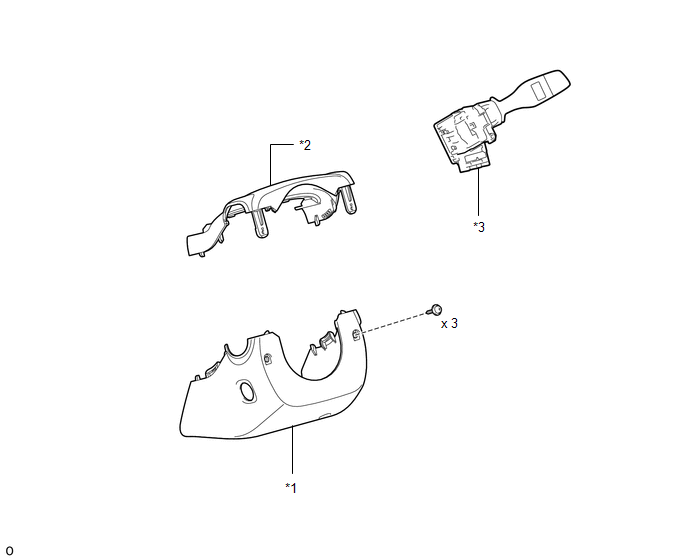

Fig 1: Wiper Switch Replacement Components [08/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
LOWER STEERING COLUMN COVER
*2
UPPER STEERING COLUMN COVER
*3
WINDSHIELD WIPER SWITCH ASSEMBLY
-
-
