System Diagram [08/2019 - 08/2021]

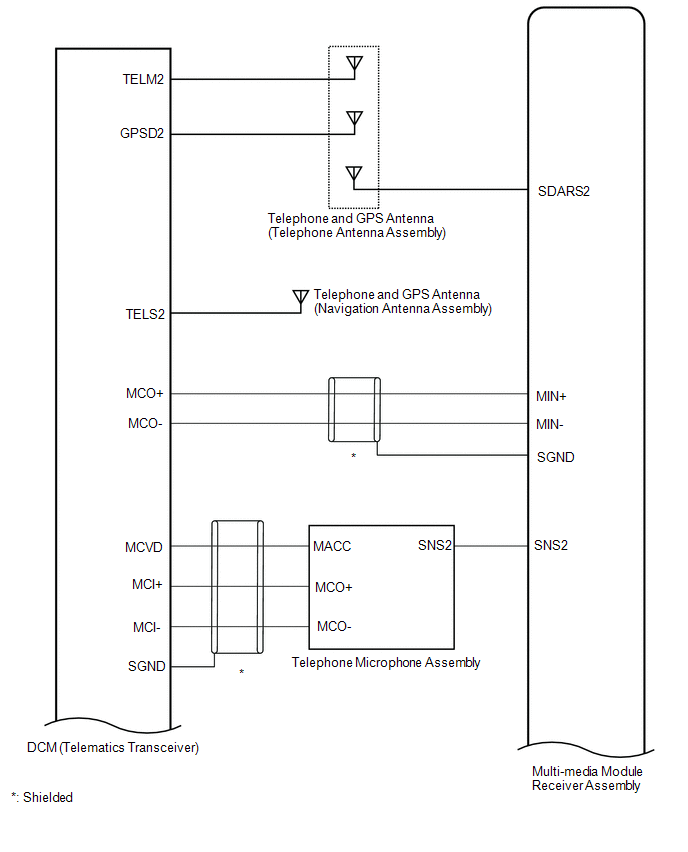

Fig 1: Lexus Enform System Wiring Diagram (1 Of 3)
GTY960427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

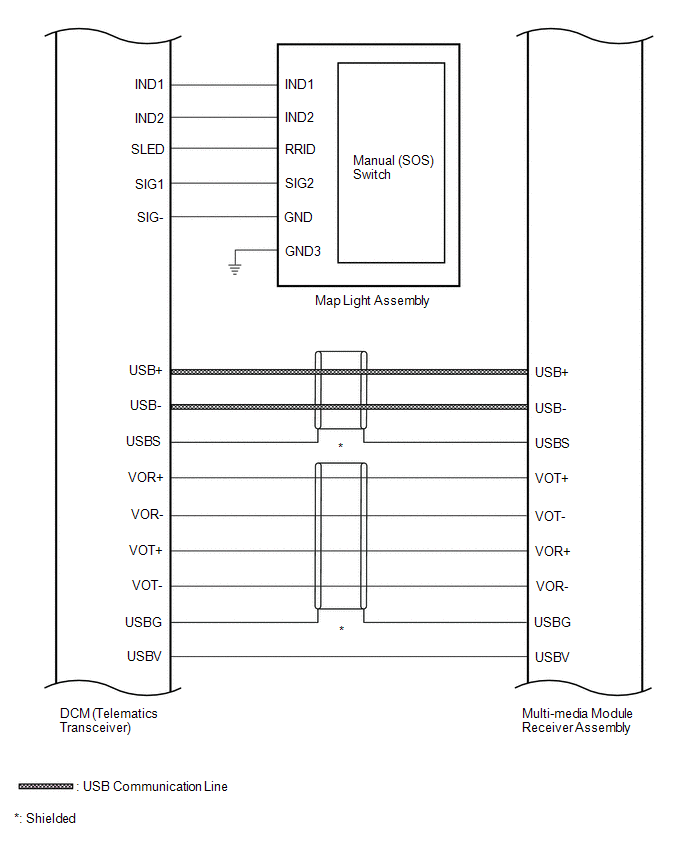

Fig 2: Lexus Enform System Wiring Diagram (2 Of 3)
GTY802839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

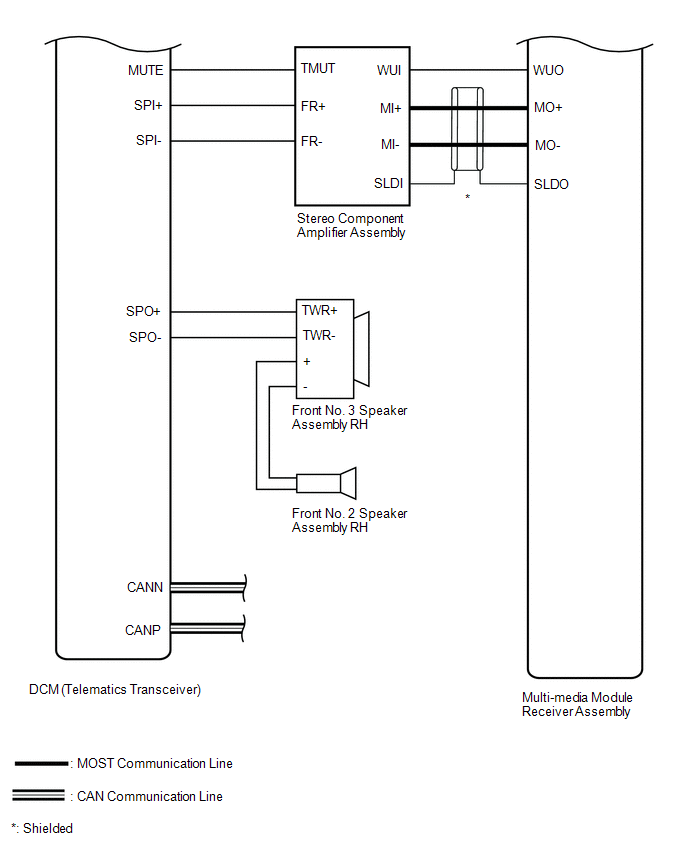

Fig 3: Lexus Enform System Wiring Diagram (3 Of 3)
GTY803041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
