DCM Data Signal Circuit between Navigation ECU and DCM [08/2021 - ]: Procedure

  1. CHECK HARNESS AND CONNECTOR (DCM [TELEMATICS TRANSCEIVER ASSEMBLY] - RADIO RECEIVER ASSEMBLY ASSEMBLY)
    1. Disconnect the H73 radio receiver assembly connector.
    2. Disconnect the G161 DCM (telematics transceiver assembly) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      H73-10 (USBV) - G161-15 (USBV) Always Below 1 Ω
      H73-11 (USBG) - G161-31 (USBG) Always Below 1 Ω
      H73-15 (VOT+) - G161-18 (VOR+) Always Below 1 Ω
      H73-16 (VOT-) - G161-34 (VOR-) Always Below 1 Ω
      H73-13 (VOR+) - G161-17 (VOT+) Always Below 1 Ω
      H73-14 (VOR-) - G161-33 (VOT-) Always Below 1 Ω
      H73-10 (USBV) - Body ground Always 10 kΩ or higher
      H73-11 (USBG) - Body ground Always 10 kΩ or higher
      H73-15 (VOT+) - Body ground Always 10 kΩ or higher
      H73-16 (VOT-) - Body ground Always 10 kΩ or higher
      H73-13 (VOR+) - Body ground Always 10 kΩ or higher
      H73-14 (VOR-) - Body ground Always 10 kΩ or higher
      H73-12 (SGND) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (DCM [TELEMATICS TRANSCEIVER ASSEMBLY] - NAVIGATION ECU)
    1. Disconnect the navigation ECU connector.

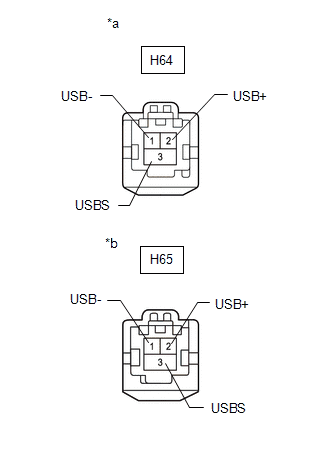

      GTY1083529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Navigation ECU)
      *b Front view of wire harness connector
      (to DCM [Telematics Transceiver Assembly])
    2. Disconnect the DCM (telematics transceiver assembly) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      H64-2 (USB+) - H65-2 (USB+) Always Below 1 Ω
      H64-1 (USB-) - H65-1 (USB-) Always Below 1 Ω
      H64-3 (USBS) - H65-3 (USBS) Always Below 1 Ω
      H64-2 (USB+) - Body ground Always 10 kΩ or higher
      H64-1 (USB-) - Body ground Always 10 kΩ or higher
      H64-3 (USBS) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [08/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
