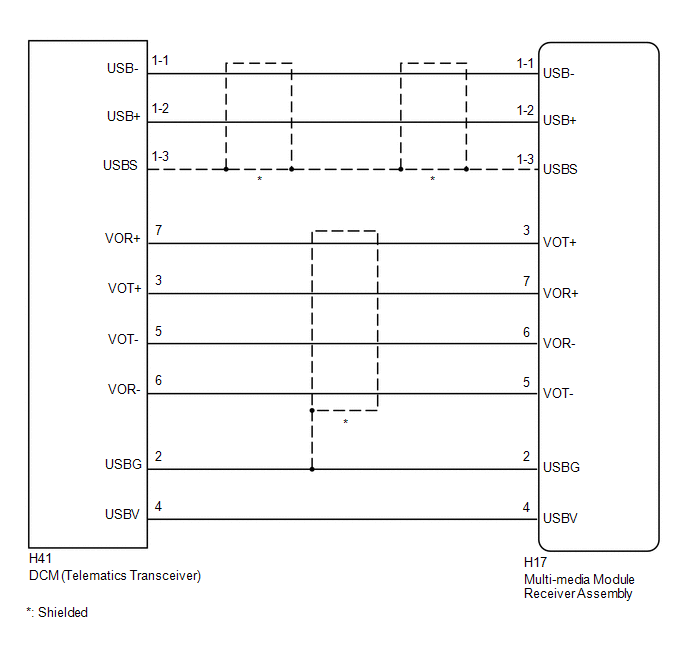

DCM Data Signal Circuit between Navigation ECU and DCM [08/2015 - 08/2018]: Wiring Diagram

GTY681186

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
