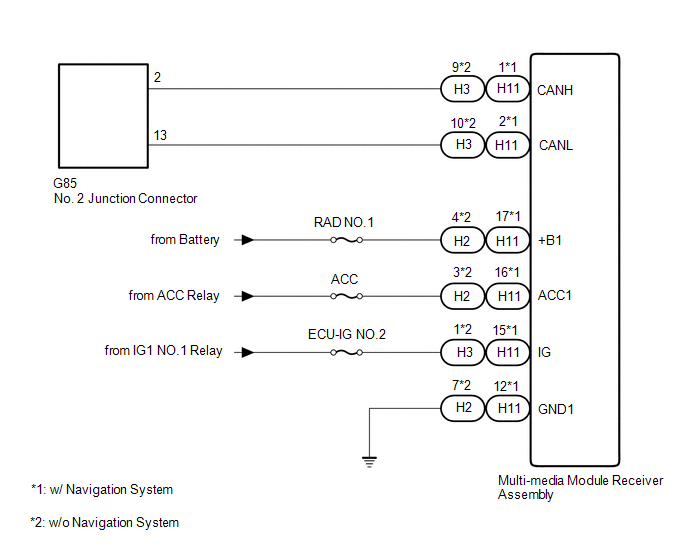

Multi-media Module Receiver Assembly Communication Stop Mode [08/2015 - 08/2019]: Wiring Diagram

GTY645894

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
