Removal [08/2021 - ]: Procedure

  1. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

    Refer to REMOVAL [08/2021 - ]

  2. REMOVE CLOCK ASSEMBLY (SECURITY INDICATOR LIGHT ASSEMBLY)

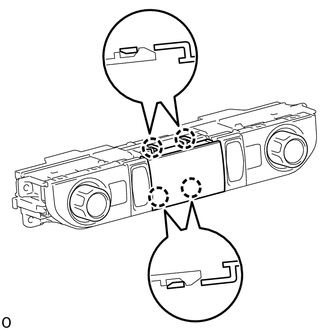

    1. Detach the claw and remove the clock assembly (security indicator light assembly).
      GTY1083705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
