Lexus
>>
2017
>>
GX 460 Base
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Anti-Theft Systems
>>
Theft Deterrent System / Keyless Entry System (Service Information)
>>
Entry Lock And Unlock Switch
>>
Components [08/2015 - ]
Components [08/2015 - ]

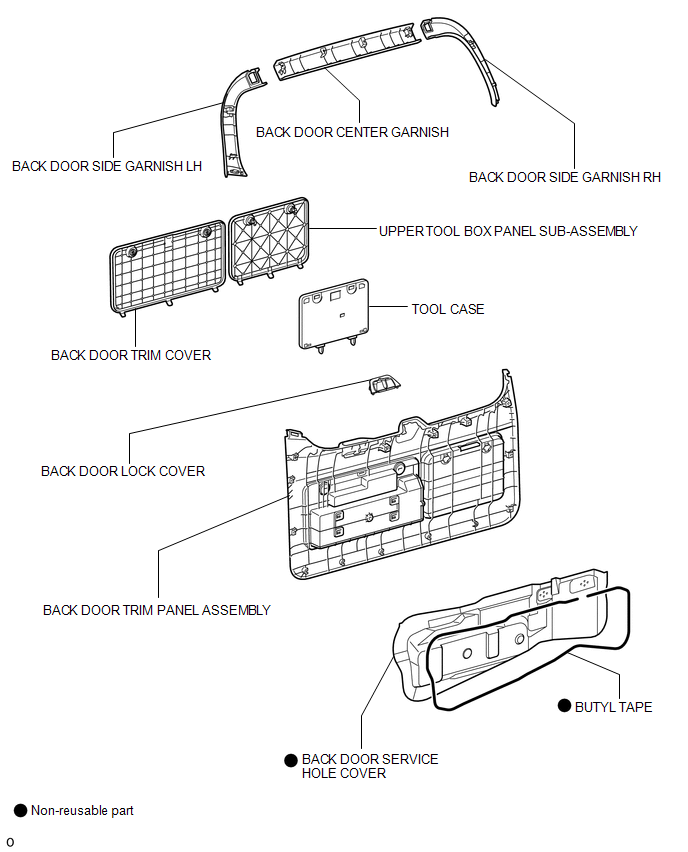

Fig 1: Entry Lock And Unlock Switch Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

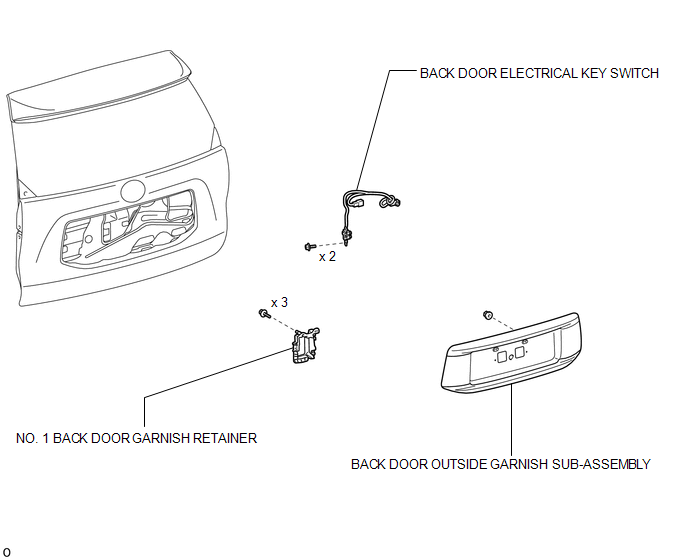

Fig 2: Entry Lock And Unlock Switch Replacement Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
