Power Source Mode does not Change to ON (IG and ACC) [08/2019 - ]: Wiring Diagram

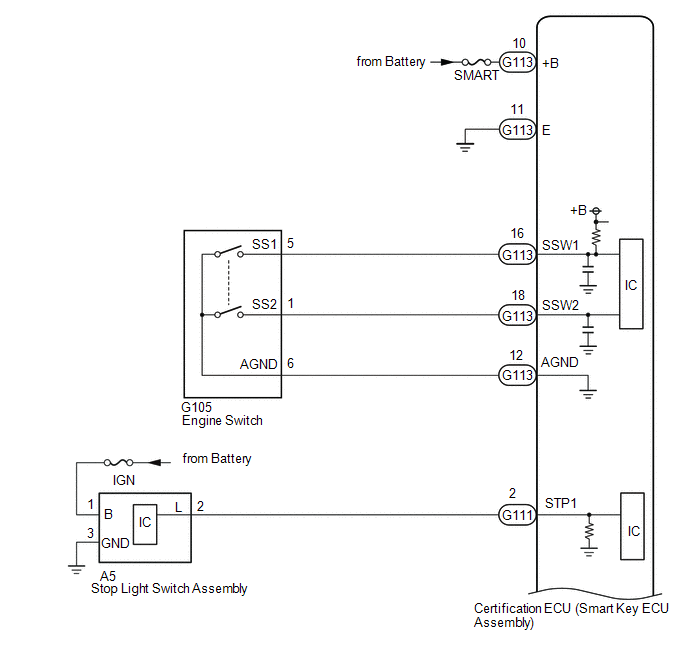

GTY961212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

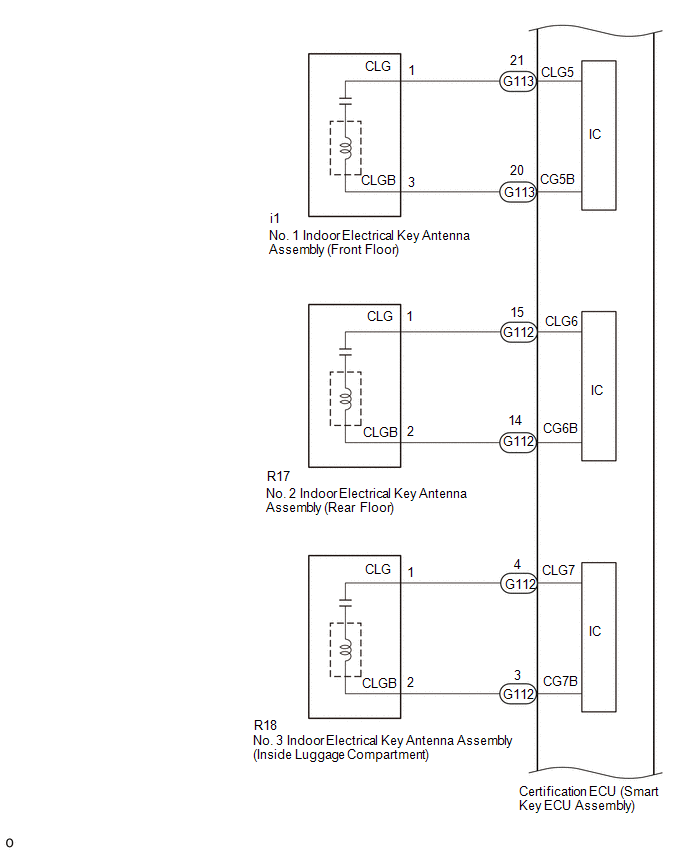

GTY960958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

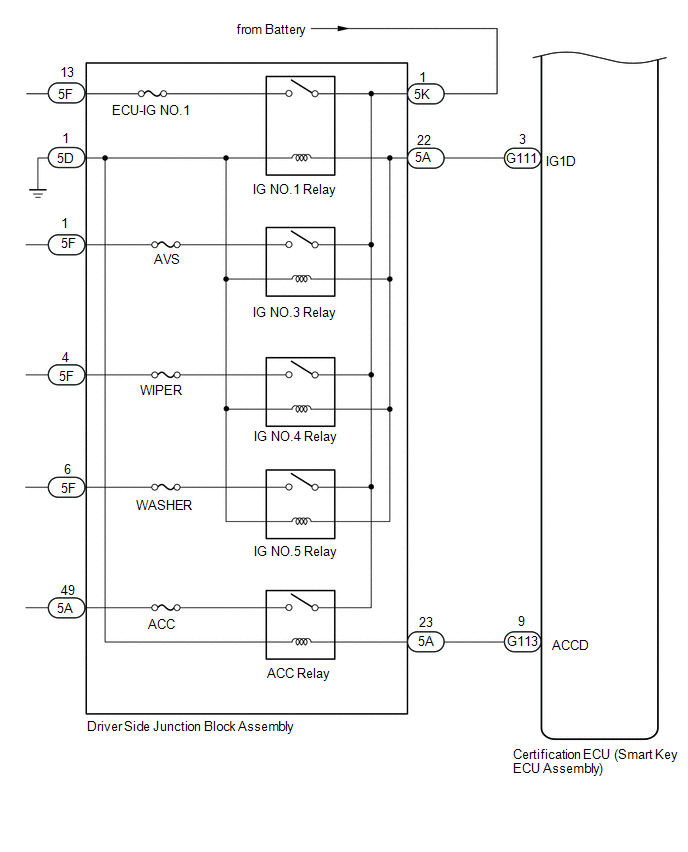

GTY962184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
