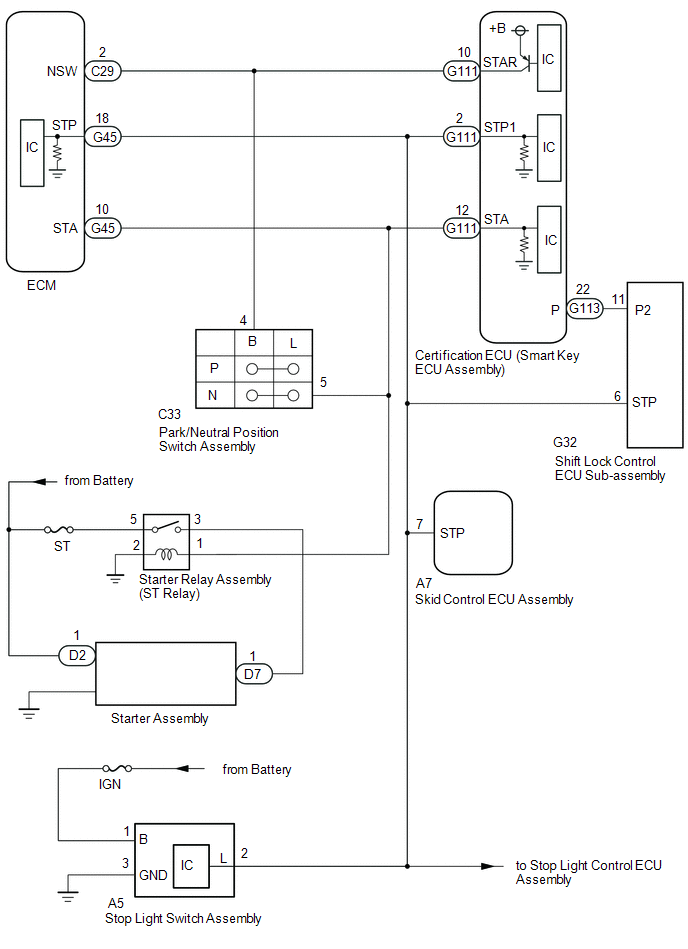

Engine does not Start [08/2019 - 08/2022]: Wiring Diagram

GTY952541

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
