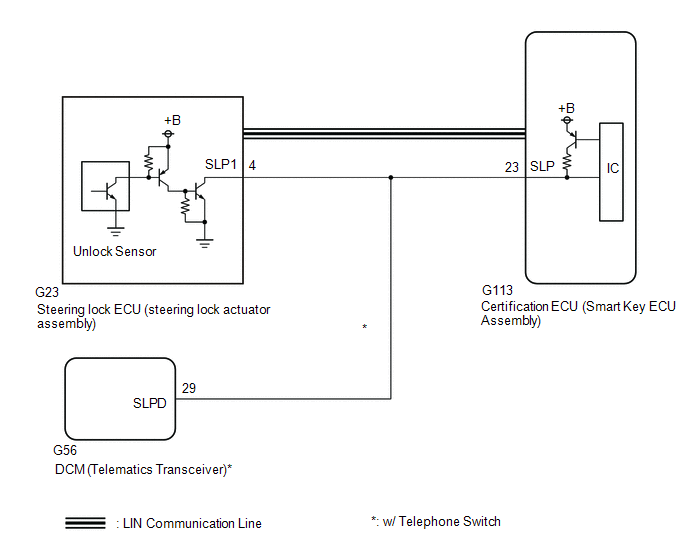

DTC B2285: Steering Lock Position Signal Circuit Malfunction [08/2019 - 08/2022]: Wiring Diagram

w/ Steering Lock System:

GTY1083539

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
