DTC B27A7: Open in Inside Luggage Compartment Electrical Key Oscillator Circuit [08/2019 - ]: Procedure

1. Check that the connectors are properly connected to the certification ECU (smart key ECU assembly) and No. 3 indoor electrical key antenna assembly (inside luggage compartment).

   Result

   Result	Proceed to
   The connectors are properly connected	A
   The connectors are not properly connected	B

Result:

B

CONNECT CONNECTORS PROPERLY

Result:

A

See step  2

1. Disconnect the G112 certification ECU (smart key ECU assembly) connector.
2. Disconnect the R18 No. 3 indoor electrical key antenna assembly (inside luggage compartment) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G112-4 (CLG7) - R18-1 (CLG)	Always	Below 1 Ω
   G112-3 (CG7B) - R18-2 (CLGB)	Always	Below 1 Ω

4. Reconnect the G112 certification ECU (smart key ECU assembly) connector.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

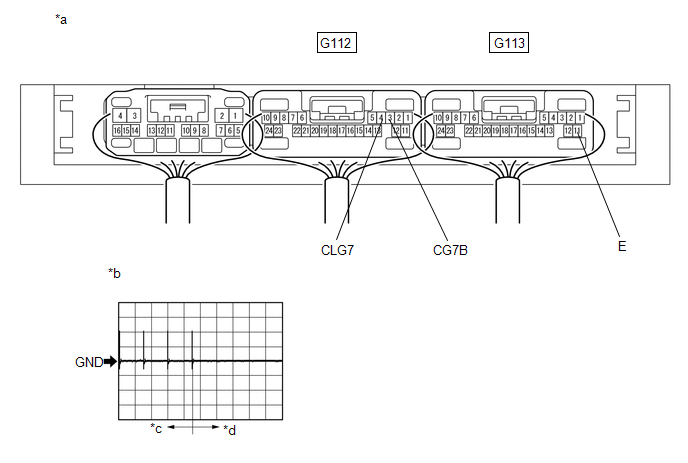

1. Using an oscilloscope, check the waveform.

   OK

   Tester Connection	Condition	Tool Setting	Specified Condition
   G112-4 (CLG7) - G113-11 (E)	Procedure: Engine switch off Electrical key transmitter sub-assembly not inside vehicle Within 30 seconds of closing any door	2 V/DIV., 500 ms/DIV.	Pulse generation (See waveform)
   G112-3 (CG7B) - G113-11 (E)	Procedure: Engine switch off Electrical key transmitter sub-assembly not inside vehicle Within 30 seconds of closing any door	2 V/DIV., 500 ms/DIV.	Pulse generation (See waveform)

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT). Refer to  REMOVAL [08/2015 - ]

Result:

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [08/2019 - 08/2021]  , or refer to  REMOVAL [08/2021 - ]
