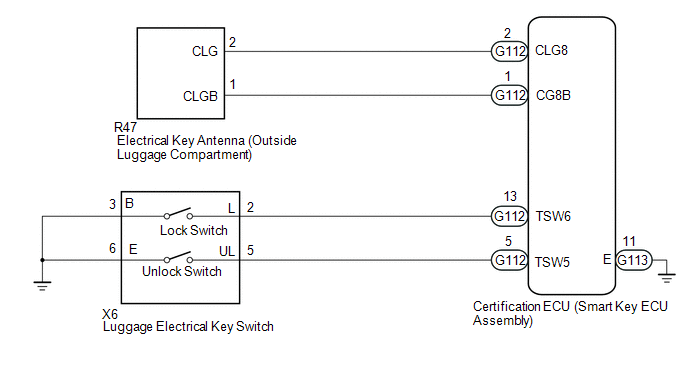

Back Door Entry Lock and Unlock Functions do not Operate [08/2019 - ]: Wiring Diagram

GTY962209

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
