Components [10/2015 - ]: Illustration

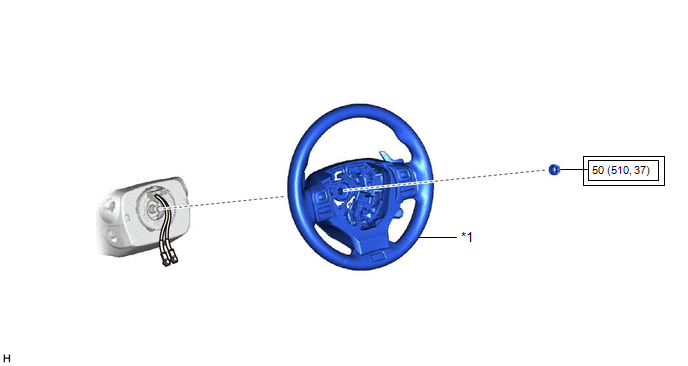

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	STEERING WHEEL ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

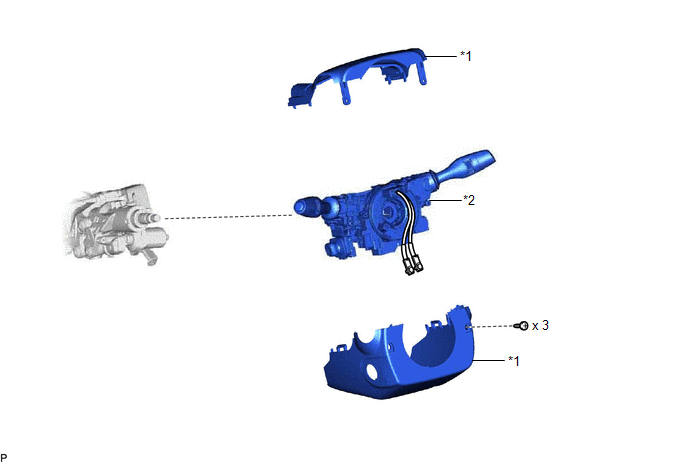

Fig 1: Steering Column Assembly Replacement Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STEERING COLUMN COVER

TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY

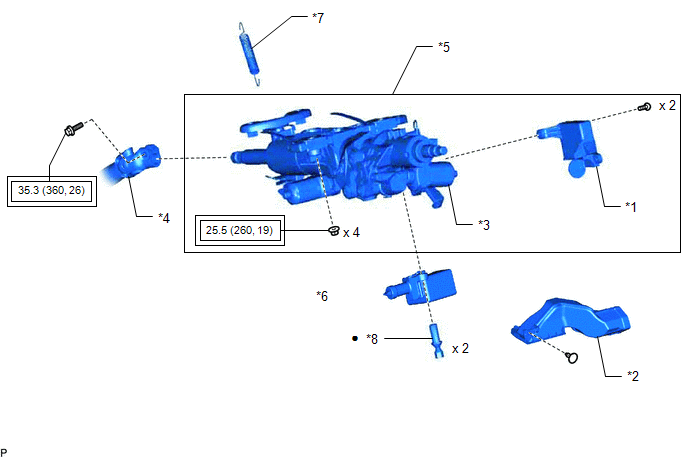

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	MULTIPLEX TILT AND TELESCOPIC ECU	*2	NO. 1 AIR DUCT SUB-ASSEMBLY
*3	TILT STEERING GEAR WITH MOTOR ASSEMBLY	*4	NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
*5	STEERING COLUMN ASSEMBLY	*6	STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY
*7	BRAKE PEDAL RETURN SPRING	*8	STEERING LOCK SET BOLT
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	•	Non-reusable part

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (4 Of 5)

Callout	Description	Callout	Description
*1	FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

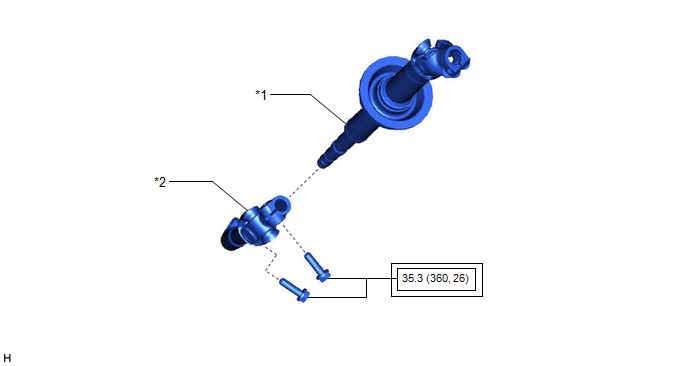

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (5 Of 5)

Callout	Description	Callout	Description
*1	NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY	*2	STEERING SLIDING YOKE WITH SHAFT SUB-ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-
