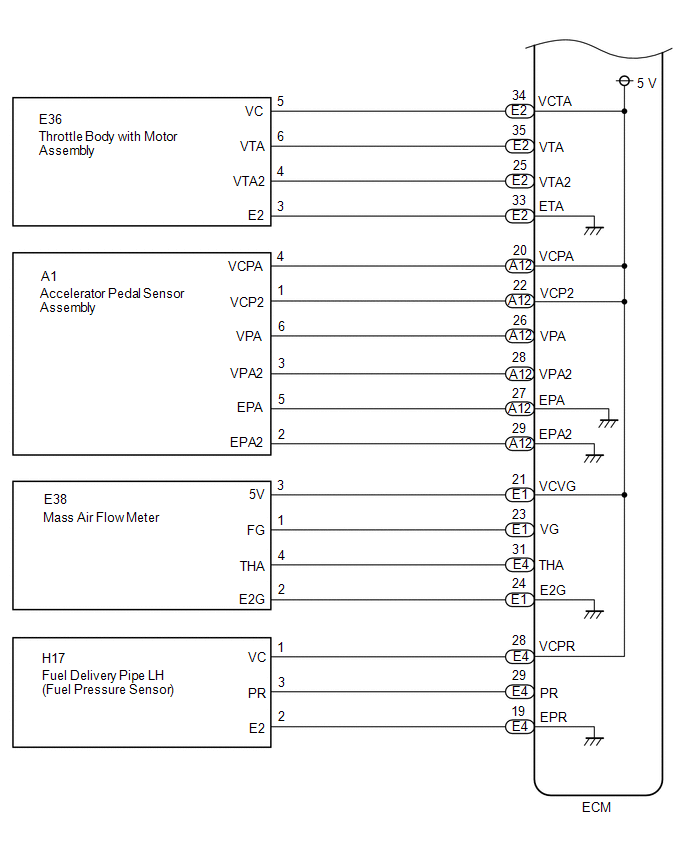

VC Output Circuit [10/2015 - ]: Wiring Diagram

For the circuit diagram of the ECM power source refer to the ECM power source circuit.
Refer to VC Output Circuit [10/2015 - ]

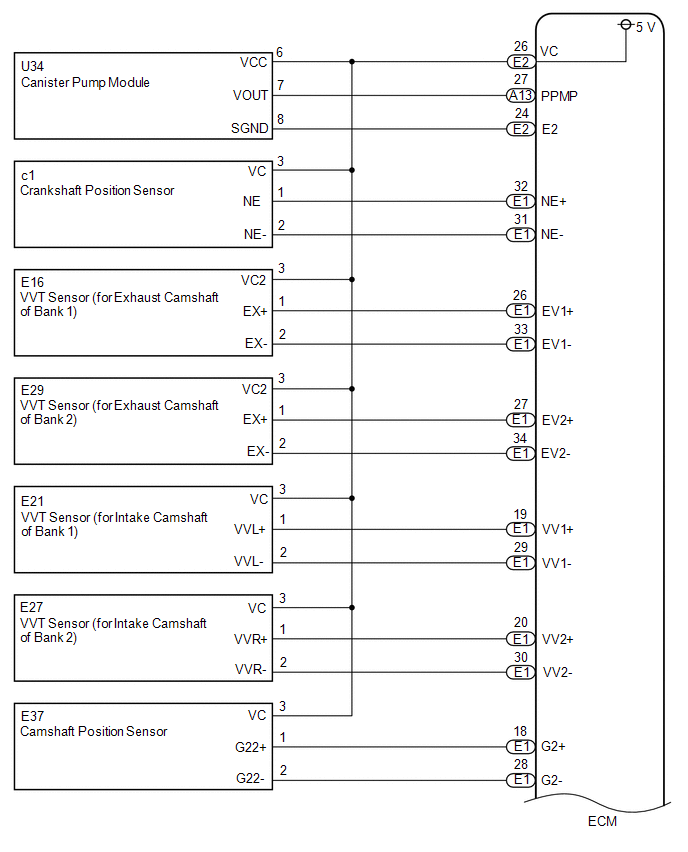

VC Power Source Circuit
