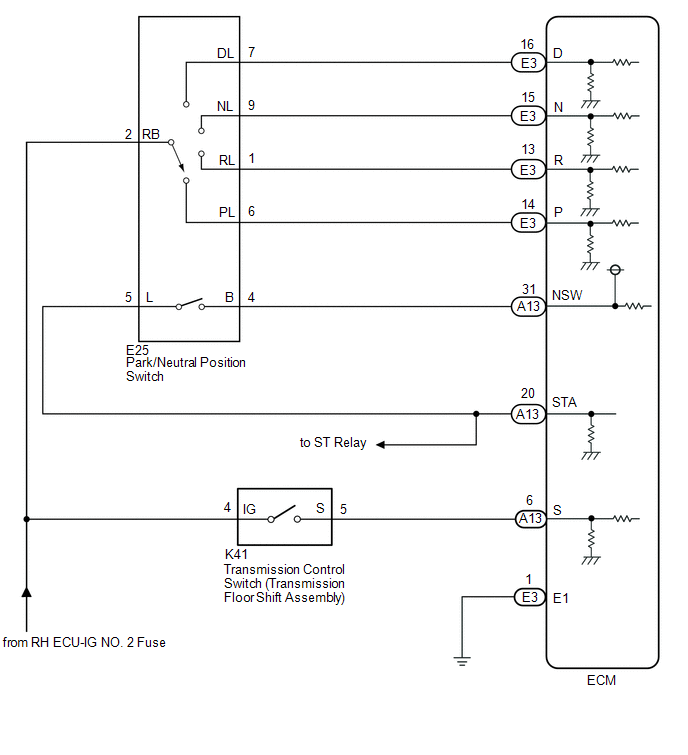

DTC P0705: Transmission Range Sensor Circuit (PRNDL Input) [10/2015 - ]: Wiring Diagram

GTY682227

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
