Components [10/2015 - ]: Illustration

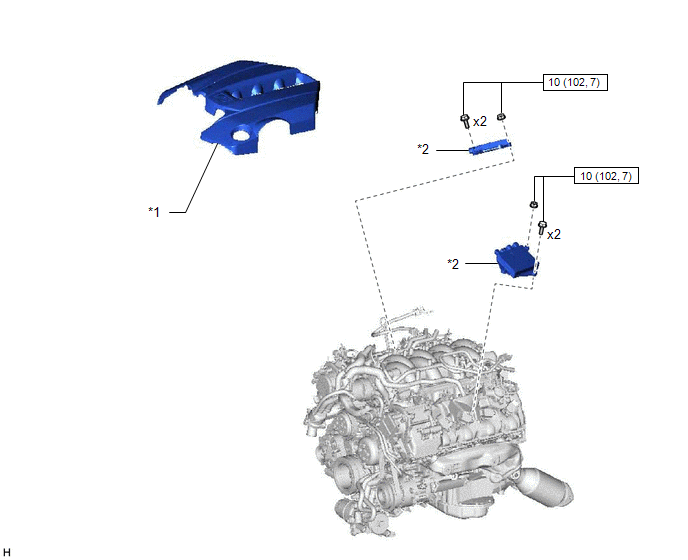

Fig 1: Injector Driver Replacement Components With Torque Specifications
GTY659753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 V-BANK COVER SUB-ASSEMBLY *2 INJECTOR DRIVER
N*m (kgf*cm, ft.*lbf): Specified torque - -
