Removal [09/2017 - ]: Procedure

PRECAUTION
NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Refer to PRECAUTION [10/2015 - ]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [09/2017 - ]

REMOVE NO. 2 RELAY BLOCK COVER

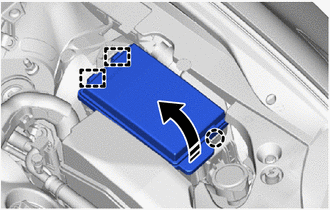

Disengage the claw and guides to remove the No. 2 relay block cover as shown in the illustration.

GTY656375

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE NO. 2 INTEGRATION RELAY

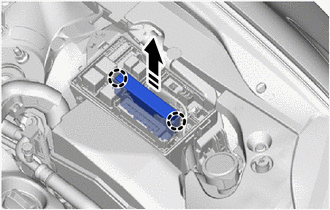

Disengage the claws.

GTY657096

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Pull up the No. 2 integration relay as shown in the illustration.
NOTE:
When pulling the No. 2 integration relay, take care not to damage it.

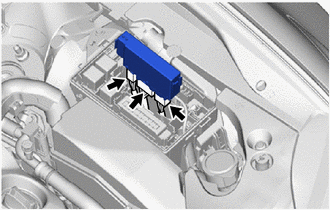

Disconnect the 3 connectors to remove the No. 2 integration relay.

NOTE:

When pulling the No. 2 integration relay, take care not to damage it.

GTY650886

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 1 INTEGRATION RELAY

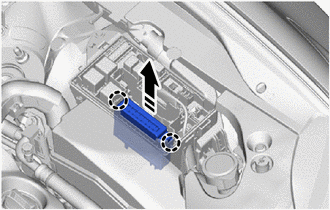

Disengage the claws.

GTY642368

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Pull up the No. 1 integration relay as shown in the illustration.
NOTE:
When pulling the No. 1 integration relay, take care not to damage it.

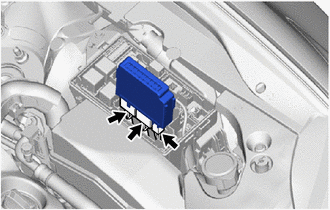

Disconnect the 3 connectors to remove the No. 1 integration relay.

NOTE:

When pulling the No. 1 integration relay, take care not to damage it.

GTY644557

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
