Inspection [10/2015 - ]: Procedure

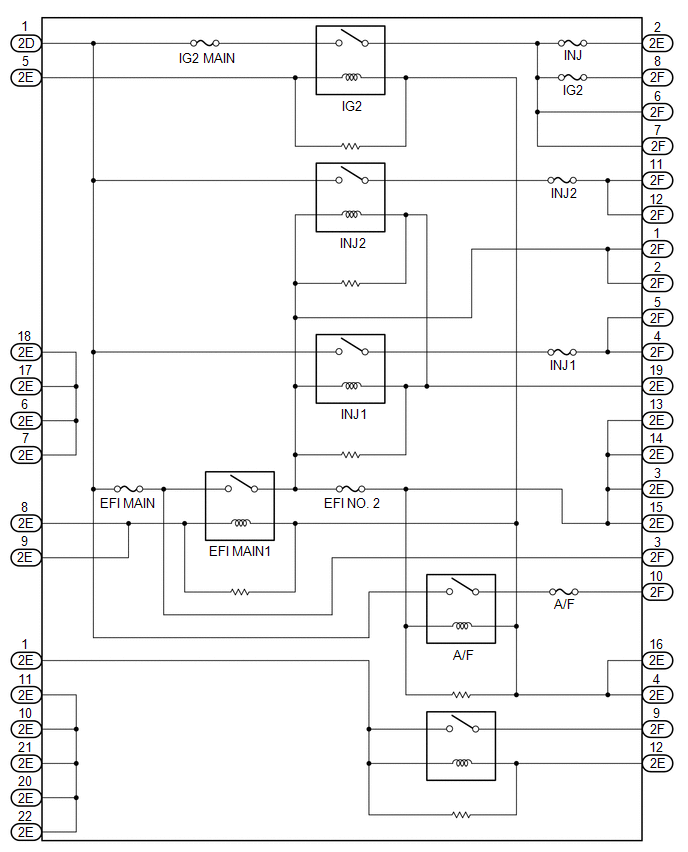

  1. INSPECT NO. 1 INTEGRATION RELAY
    GTY664276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. IG2 RELAY
      GTY618662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (No. 1 Integration Relay)
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        2D-1 - 2E-2
        2D-1 - 2F-6
        2D-1 - 2F-7
        2D-1 - 2F-8        		 Battery voltage not applied between terminals
        2E-5 - 2E-4        		 10 kΩ or higher
        Battery positive (+) → 2E-5
        Battery negative (-) → 2E-4        		 Below 1 Ω
        Battery voltage not applied between terminals
        2E-5 - 2E-16        		 10 kΩ or higher
        Battery positive (+) → 2E-5
        Battery negative (-) → 2E-16        		 Below 1 Ω
    2. INJ2 RELAY
      GTY618662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (No. 1 Integration Relay)
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        2D-1 - 2F-11
        2D-1 - 2F-12        		 Battery voltage not applied between terminals
        2E-8 - 2E-4
        and
        2D-1 - 2E-19        		 10 kΩ or higher
        Battery positive (+) → 2E-8
        Battery negative (-) → 2E-4
        and
        Battery positive (+) → 2D-1
        Battery negative (-) → 2E-19        		 Below 1Ω
        Battery voltage not applied between terminals
        2E-9 - 2E-4
        and
        2D-1 - 2E-19        		 10 kΩ or higher
        Battery positive (+) → 2E-9
        Battery negative (-) → 2E-4
        and
        Battery positive (+) → 2D-1
        Battery negative (-) → 2E-19        		 Below 1 Ω
        Battery voltage not applied between terminals
        2E-8 - 2E-16
        and
        2D-1 - 2E-19        		 10 kΩ or higher
        Battery positive (+) → 2E-8
        Battery negative (-) → 2E-16
        and
        Battery positive (+) → 2D-1
        Battery negative (-) → 2E-19        		 Below 1 Ω
        Battery voltage not applied between terminals
        2E-9 - 2E-16
        and
        2D-1 - 2E-19        		 10 kΩ or higher
        Battery positive (+) → 2E-9
        Battery negative (-) → 2E-16
        and
        Battery positive (+) → 2D-1
        Battery negative (-) → 2E-19        		 Below 1 Ω
    3. INJ1 RELAY
      GTY618662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (No. 1 Integration Relay)
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        2D-1 - 2F-4
        2D-1 - 2F-5        		 Battery voltage not applied between terminals
        2E-8 - 2E-4
        and
        2D-1 - 2E-19        		 10 kΩ or higher
        Battery positive (+) → 2E-8
        Battery negative (-) → 2E-4
        and
        Battery positive (+) → 2D-1
        Battery negative (-) → 2E-19        		 Below 1 Ω
        Battery voltage not applied between terminals
        2E-9 - 2E-4
        and
        2D-1 - 2E-19        		 10 kΩ or higher
        Battery positive (+) → 2E-9
        Battery negative (-) → 2E-4
        and
        Battery positive (+) → 2D-1
        Battery negative (-) → 2E-19        		 Below 1 Ω
        Battery voltage not applied between terminals
        2E-8 - 2E-16
        and
        2D-1 - 2E-19        		 10 kΩ or higher
        Battery positive (+) → 2E-8
        Battery negative (-) → 2E-16
        and
        Battery positive (+) → 2D-1
        Battery negative (-) → 2E-19        		 Below 1 Ω
        Battery voltage not applied between terminals
        2E-9 - 2E-16
        and
        2D-1 - 2E-19        		 10 kΩ or higher
        Battery positive (+) → 2E-9
        Battery negative (-) → 2E-16
        and
        Battery positive (+) → 2D-1
        Battery negative (-) → 2E-19        		 Below 1 Ω
    4. EFI MAIN1 RELAY
      GTY618662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (No. 1 Integration Relay)
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        2D-1 - 2E-3
        2D-1 - 2E-4
        2D-1 - 2E-13
        2D-1 - 2E-14
        2D-1 - 2E-15
        2D-1 - 2E-16
        2D-1 - 2E-19        		 Battery voltage not applied between terminals
        2E-8 - 2E-4        		 10 kΩ or higher
        Battery positive (+) → 2E-8
        Battery negative (-) → 2E-4        		 Below 1 Ω
        Battery voltage not applied between terminals
        2E-9 - 2E-4        		 10 kΩ or higher
        Battery positive (+) → 2E-9
        Battery negative (-) → 2E-4        		 Below 1 Ω
        Battery voltage not applied between terminals
        2E-8 - 2E-16        		 10 kΩ or higher
        Battery positive (+) → 2E-8
        Battery negative (-) → 2E-16        		 Below 1 Ω
        Battery voltage not applied between terminals
        2E-9 - 2E-16        		 10 kΩ or higher
        Battery positive (+) → 2E-9
        Battery negative (-) → 2E-16        		 Below 1 Ω
    5. A/F RELAY
      GTY618662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (No. 1 Integration Relay)
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        2D-1 - 2F-10 Battery voltage not applied between terminals
        2E-8 - 2E-4        		 10 kΩ or higher
        Battery positive (+) → 2E-8
        Battery negative (-) → 2E-4        		 Below 1 Ω
        Battery voltage not applied between terminals
        2E-9 - 2E-4        		 10 kΩ or higher
        Battery positive (+) → 2E-9
        Battery negative (-) → 2E-4        		 Below 1 Ω
        Battery voltage not applied between terminals
        2E-8 - 2E-16        		 10 kΩ or higher
        Battery positive (+) → 2E-8
        Battery negative (-) → 2E-16        		 Below 1 Ω
        Battery voltage not applied between terminals
        2E-9 - 2E-16        		 10 kΩ or higher
        Battery positive (+) → 2E-9
        Battery negative (-) → 2E-16        		 Below 1 Ω
        Battery voltage not applied between terminals
        2D-1 - 2E-4        		 10 kΩ or higher
        Battery positive (+) → 2D-1
        Battery negative (-) → 2E-4        		 Below 1 Ω
        Battery voltage not applied between terminals
        2D-1 - 2E-16        		 10 kΩ or higher
        Battery positive (+) → 2D-1
        Battery negative (-) → 2E-16        		 Below 1 Ω
