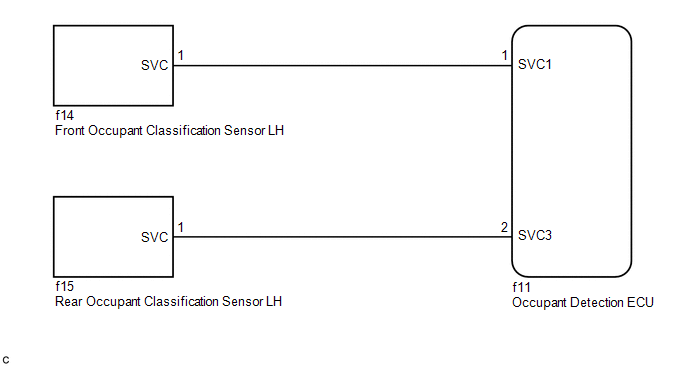

DTC B1793: Occupant Classification Sensor Power Supply Circuit Malfunction [10/2015 - ]: Wiring Diagram

GTY644735

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
