System Description [10/2015 - 09/2017]
- OUTLINE HEADUP DISPLAY SYSTEM
- The headup display system is connected to CAN communication and local bus communication, receives signals from each ECU and displays each screen.

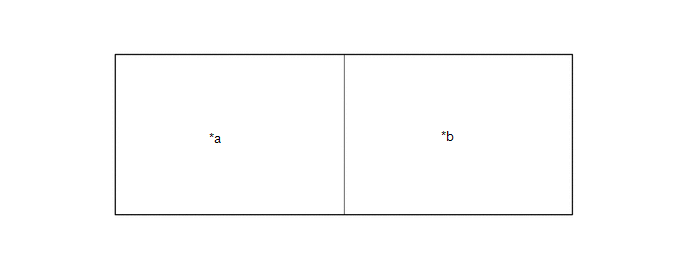

*a Display Area A *b Display Area B Area Order of Priority Display Details A - Speedometer B 1 PCS warning display 2 Dynamic radar cruise control warning message Lane departure alert system deviation warning 3 Customize information Audio information 4 Navigation system (turn-by-turn)*1 Speed limit display 5 Dynamic radar cruise control system display Lane departure alert system display 6 Sport mode A (tachometer and shift position) Sport mode B (rev indicator and shift position) - *1: w/ Navigation System
- The headup display system is connected to CAN communication and local bus communication, receives signals from each ECU and displays each screen.
