Power Window Control System - Diagnostic Codes And Symptom Tests
>>
Power Window Control System
>>
Symptom Tests
>>
Driver Side Power Window does not Operate with Power Window Master Switch [10/2015 - ]
>>
Wiring Diagram

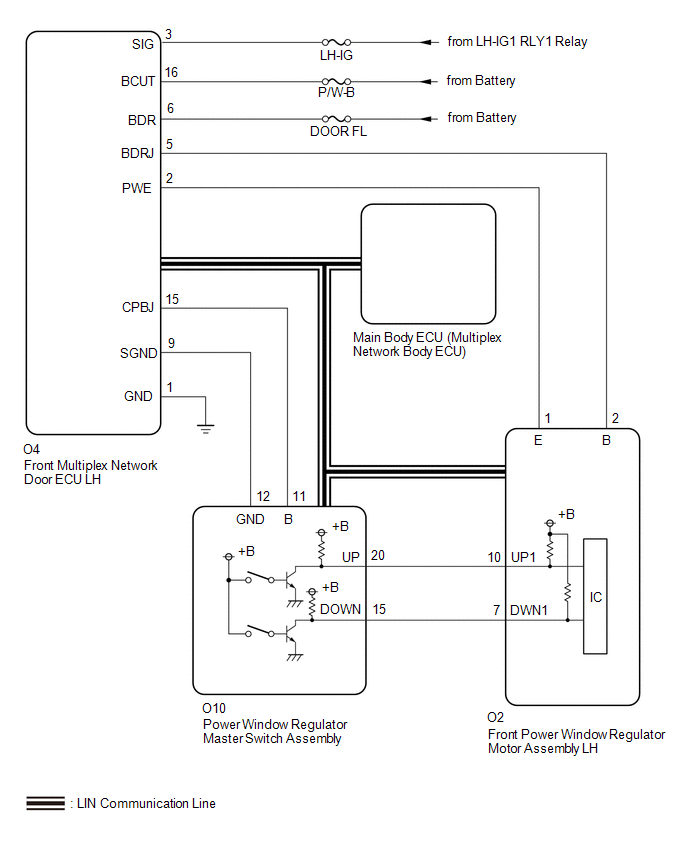

Driver Side Power Window does not Operate with Power Window Master Switch [10/2015 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
