Microphone Circuit between Microphone and Navigation Receiver Assembly [10/2015 - ]: Wiring Diagram

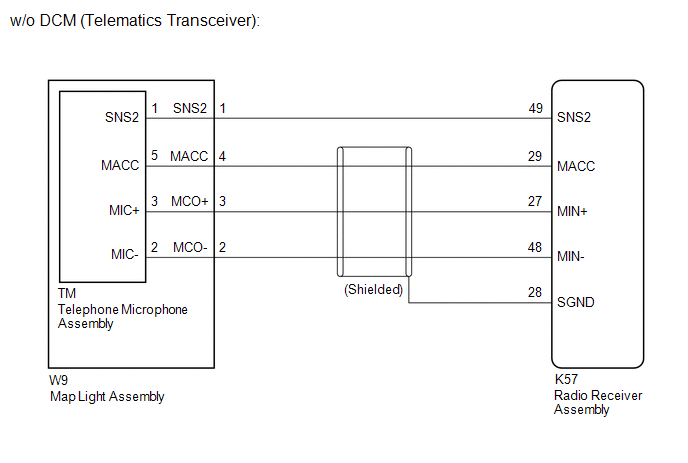

GTY631971

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

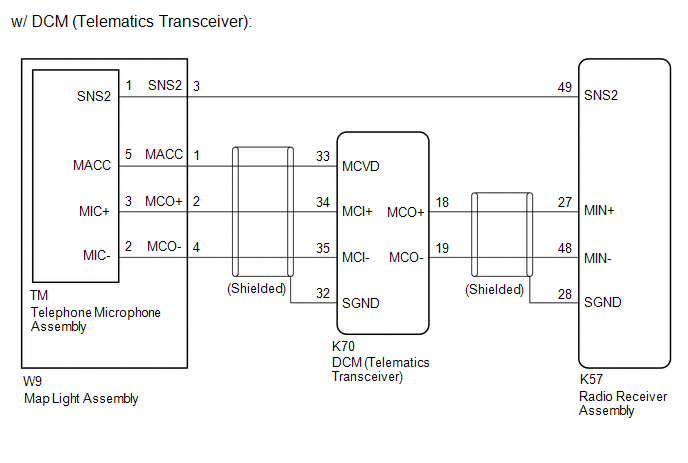

GTY639220

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
