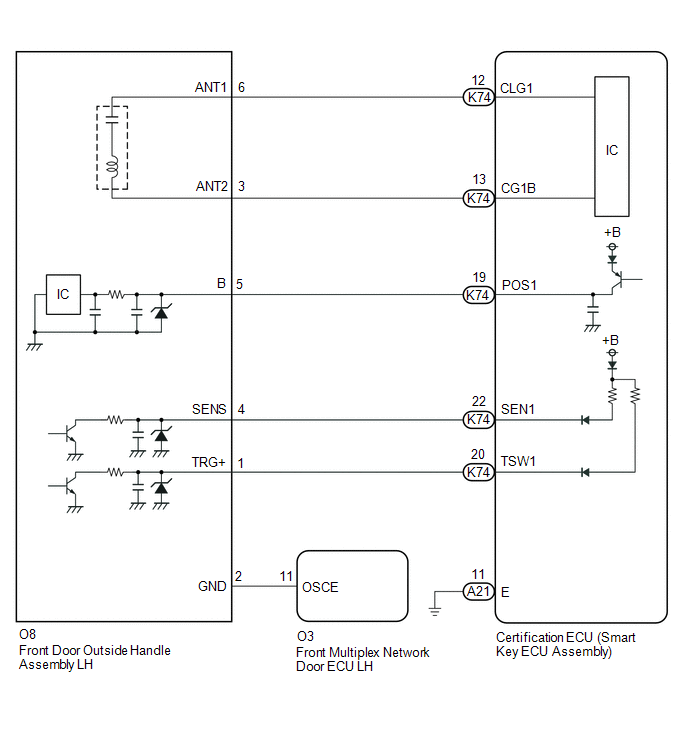

Driver Side Door Entry Lock Function does not Operate [10/2015 - ]: Wiring Diagram

GTY625262

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
