Removal [10/2015 - ]: Procedure

  1. REMOVE STEERING PAD

    (See article. Refer to REMOVAL [10/2015 - 09/2016] Refer to REMOVAL [09/2016 - ] )

  2. REMOVE CRUISE CONTROL MAIN SWITCH

    Refer to PROCEDURE - Step 6

  3. REMOVE STEERING PAD SWITCH ASSEMBLY
    1. Disconnect the connector from the spiral cable.

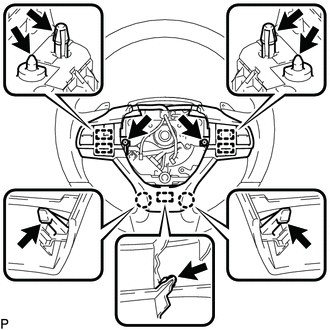

    2. Remove the 2 screws.
      GTY525902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 5 pins and 2 claws and remove the switch assembly.
