Disassembly [09/2014 - ]: Procedure

  1. REMOVE STEERING LOCK ACTUATOR ASSEMBLY
    1. Using a center punch, mark the center of the 2 tapered-head bolts.
    2. Using a 3 to 4 mm (0.118 to 0.157 in.) drill, drill a hole in the 2 tapered-head bolts.

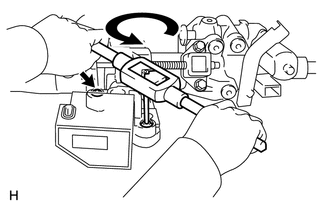

    3. Using a screw extractor, remove the 2 tapered-head bolts and steering lock actuator assembly from the steering column assembly.
      GTY420043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE MULTIPLEX TILT AND TELESCOPIC ECU

    See step  3
