Components [10/2015 - ]: Illustration

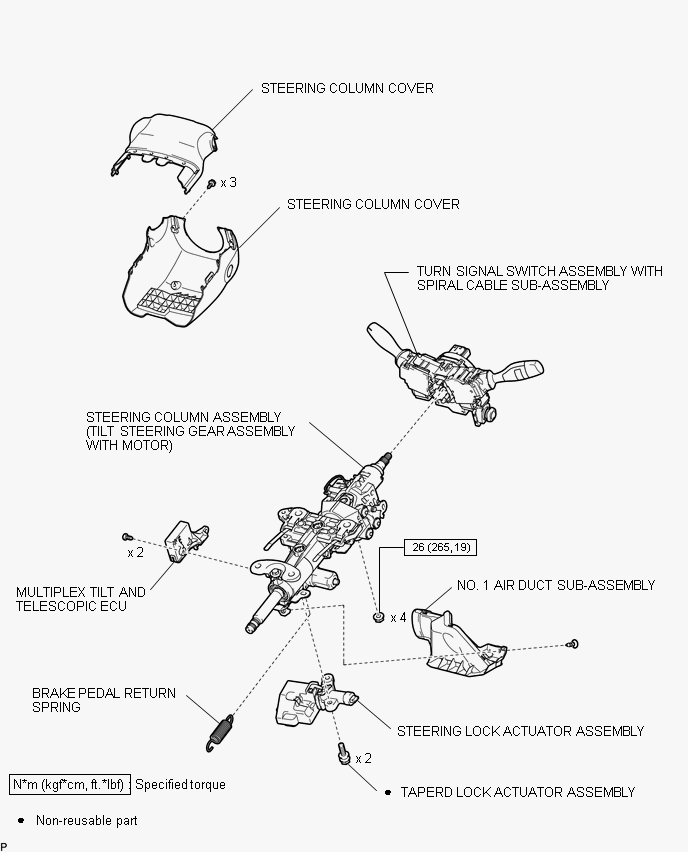

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (1 Of 3)
GTY535804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

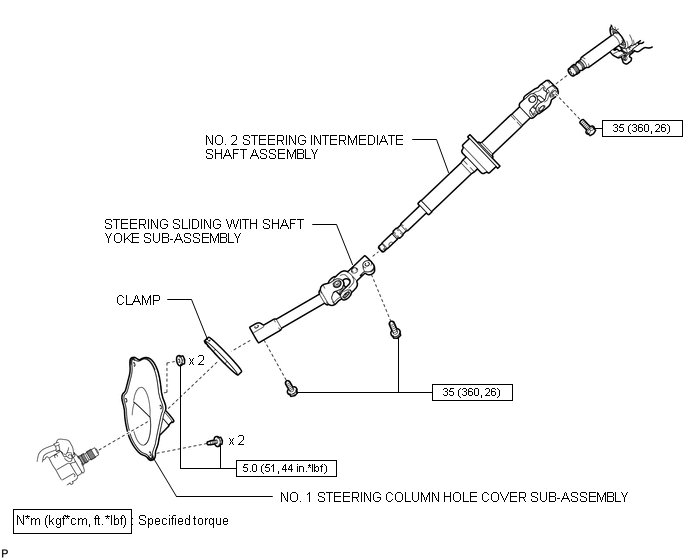

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (2 Of 3)
GTY532779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (3 Of 3)
GTY538204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
