Components [09/2014 - 10/2015]: Illustration

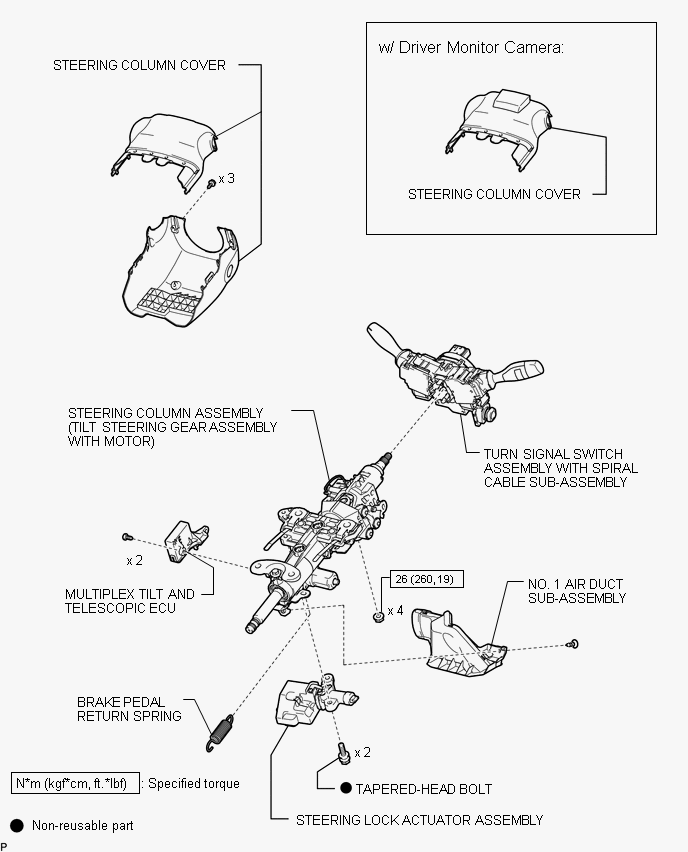

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY526628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

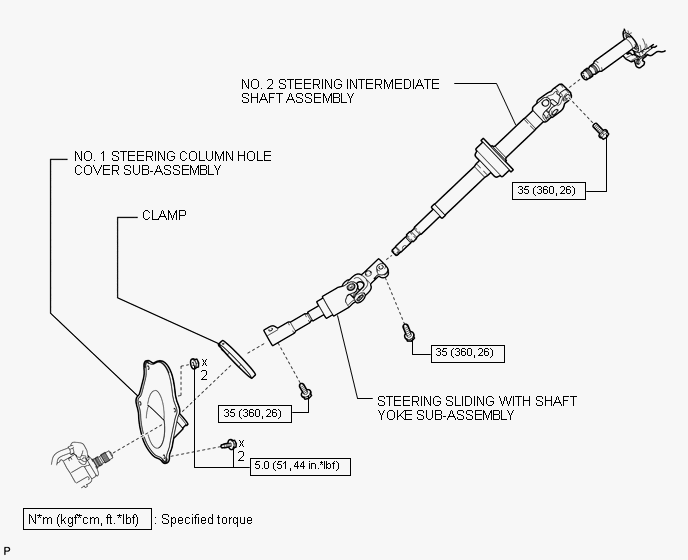

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY526331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
