VC Output Circuit [09/2014 - 10/2015]: Wiring Diagram

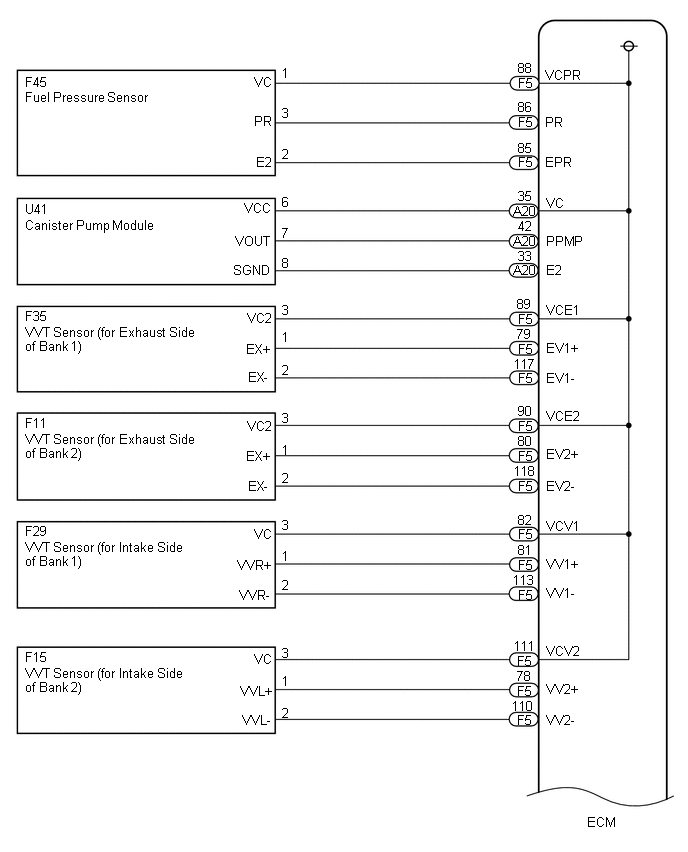

Fig 1: VC Output Circuit Wiring Diagram (1 Of 2)
GTY411413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

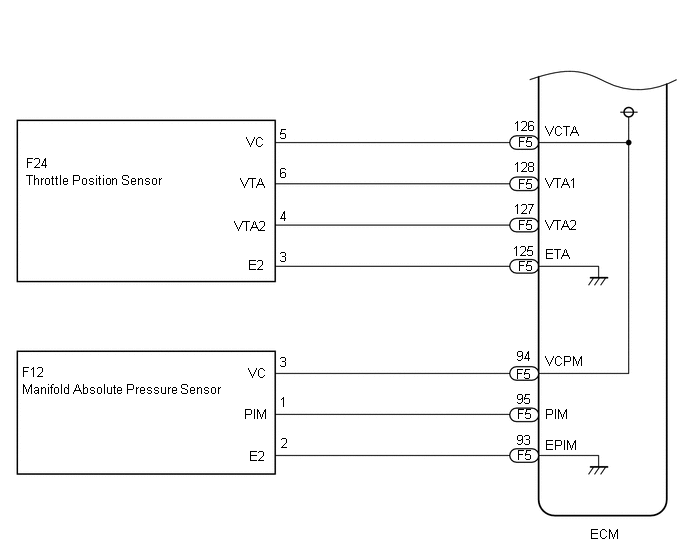

Fig 2: VC Output Circuit Wiring Diagram (2 Of 2)
GTY535785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
