Fuel Pump Control Circuit [09/2014 - 10/2015]: Wiring Diagram

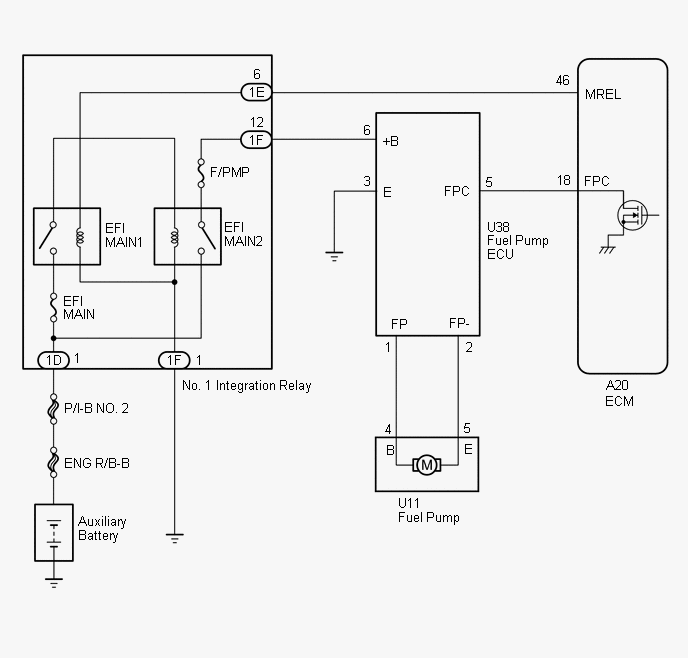

Fig 1: Fuel Pump Control Circuit Wiring Diagram

GTY537985

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
