ECM Power Source Circuit [09/2014 - ]: Wiring Diagram

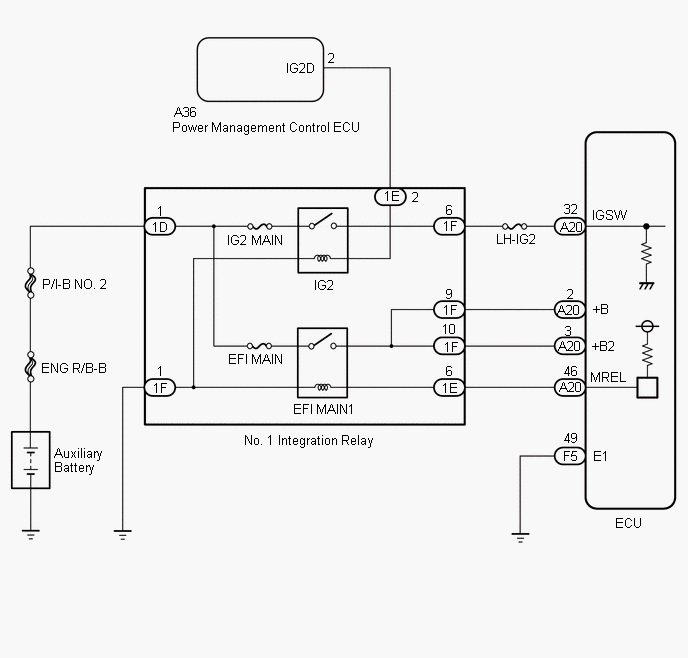

Fig 1: ECM Power Source Circuit Wiring Diagram

GTY527819

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
